Vehicle Exploded View - MOTO-GUZZI AUDACE 1400 1400 Carbon E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

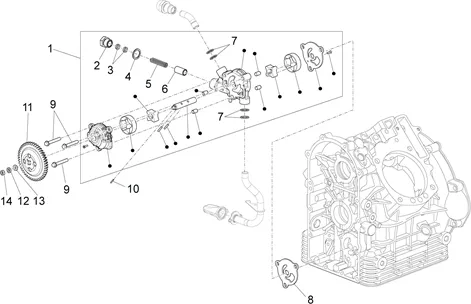

Moteur : 03.20 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/925/Audace_1400_Carbon_E4_ABS_2017_(EMEA_LATAM)_03.20.png)
1 |
8746505-GRUPPO PUMP OIL CPL. X RIC * More informationQuantity required : 1 |
||||||
|
2 |
GU31159050-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/3/img/126163.jpg)
3 |
SPACER (6. 5X11. 5X3) OEM PIAGGIO COMMON A LA RANGE-GU30158900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
4 |
WASHER CUIVRE (18. 25X24X1) OEM MOTO GUZZI COMMON A LA RANGE-GU18144350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/8/img/68848.jpg)
5 |
SPRING OEM PIAGGIO COMMON A LA RANGE-829486 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/4/img/68864.jpg)
6 |
VALVE OF PRESSURE OIL OEM PIAGGIO COMMON A LA RANGE-829661 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/7/img/65977.jpg)
7 |
O-RING (15X17X1. 5) OEM PIAGGIO COMMON A LA RANGE-237553 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/5/9/img/98359.jpg)
8 |
874482-GUARNIZIONE COVER PUMP OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
9 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632 More informationQuantity required : 3 |
||||||
|
10 |
874801-RULLINO More informationQuantity required : 1 |
||||||
|
11 |
877101-INGRANAGGIO CONDOTTO PUMP OIL * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
12 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/4/img/132664.JPG)
13 |
WASHER PLATE (6, 4X13X1, 5) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-GU95005306 More informationQuantity required : 1 |
||||||
|
14 |
873906-NUT More informationQuantity required : 1 |
