Vehicle Exploded View - MOTO-GUZZI AUDACE 1400 1400 Carbon E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

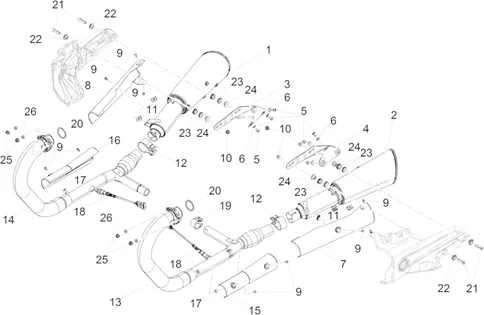

Moteur : 03.33 POT D''ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/925/Audace_1400_Carbon_E4_ABS_2017_(EMEA_LATAM)_03.33.png)
1 |
2B0033285-SILENCER D More informationQuantity required : 1 |
||||||
|
2 |
2B0033295 - SILENCIEUX G More informationQuantity required : 1 |
||||||
|
3 |
2B000366-CALIPER BRACKET SILENCER D'ECH. More informationQuantity required : 1 |
||||||
|
4 |
2B000367-CALIPER BRACKET SILENCER D'ECH. More informationQuantity required : 1 |
||||||
|
5 |
AP8152055-SCREW More informationQuantity required : 6 |
||||||
|
6 |
GU95008308-WASHER More informationQuantity required : 6 |
||||||
|
7 |
2B0033345-PROTECTOR SILENCER D'ECHAPPEMENT G. More informationQuantity required : 1 |
||||||
|
8 |
2B0033325-PROTECTOR SILENCER D'ECHAPPEMENT D. More informationQuantity required : 1 |
||||||
|
9 |
2B002143-SCREW More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
||||||
|
12 |
B063293-FASCETTA D. 48 More informationQuantity required : 2 |
||||||
|
13 |
2B003011-MANIFOLD ECHAPP. G. More informationQuantity required : 1 |
||||||
|
14 |
2B003012-MANIFOLD ECHAPP. D. More informationQuantity required : 1 |
||||||
|
15 |
2B0033315 - PROTECTION COLLECTEUR G. More informationQuantity required : 1 |
||||||
|
16 |
2B0033305 - PROTECTION COLLECTEUR D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/7/img/70637.jpg)
17 |
WASHER INTERCALAIRE OEM PIAGGIO COMMON A LA RANGE-876879 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/9/img/67299.jpg)
18 |
SONDE LAMBDA L 325 MM OEM PIAGGIO COMMON A LA RANGE-584344 More informationQuantity required : 2 |
||||||
|
19 |
B063292-FASCETTA D 37 More informationQuantity required : 1 |
||||||
|
20 |
2B002217-GASKET More informationQuantity required : 2 |
||||||
|
21 |
B063114-SCREW TSPEI M8 X 40 More informationQuantity required : 4 |
||||||
|
22 |
887816-BUSSOLA More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/8/img/71768.jpg)
23 |
BUSH RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144558 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/8/img/71468.jpg)
24 |
BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121510 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.jpg)
25 |
NUT FLANGE (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660021 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
26 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
