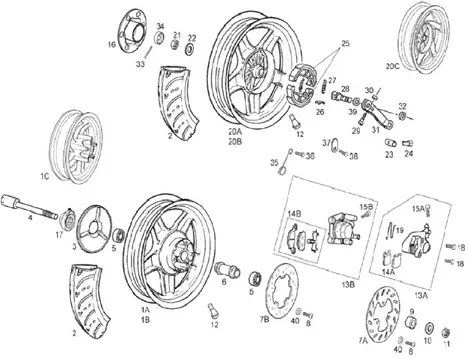

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 2T Bullet 2010

	P2R reference	187444
	Maker reference	863333

863333 - CTO.LLANTA DLNT.GRS.ATL 50 CH

	P2R reference	63978
	Maker reference	00G01212111

00G01212111 - PNEU 120/70-12 VEE RUBBER

	P2R reference	63904
	Maker reference	00F01201121

00F01201121 - FLASQUE ROUE AVANT DROITE

	P2R reference	63974
	Maker reference	00G01201271

00G01201271-SPINDLE FRONT WHEEL

	P2R reference	67481
	Maker reference	601345

BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345

	P2R reference	187445
	Maker reference	863337

863337 - ENTRETOISE DE ROUE

	P2R reference	67040
	Maker reference	56395R

BRAKE DISC SCOOT OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA S 2007 >, PRIMAVERA 2013 >, FLY 2005 >, 50 ZIP SP 2006 >, 125 VESPA PX 2001 > FRONT-56395R

	P2R reference	70481
	Maker reference	873433

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-873433

	P2R reference	68489
	Maker reference	000031123225

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

	P2R reference	68489
	Maker reference	709037

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

	P2R reference	63763
	Maker reference	002321200325

NUT - FOR FRONT WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> ROUES A RAYONS -00232120032-

	P2R reference	66094
	Maker reference	270991

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991

	P2R reference	187446
	Maker reference	864120

864120 - PINCE FREIN

	P2R reference	187447
	Maker reference	864121

864121-SET PLAQUETTES FREINS

	P2R reference	70045
	Maker reference	864123

SCREW OF BLEEDING BRAKE CALIPER OEM DERBI 50 SENDA 2010 </GILERA 50 SMT, RCR 2006 </APRILIA 50-125 RS 2013 <-864123

	P2R reference	187341
	Maker reference	00G01301161

00G01301161 - COUVERCLE

	P2R reference	64009
	Maker reference	00G01608051

00G01608051-RENVOI DE WHEEL

	P2R reference	63657
	Maker reference	000060830005

00006083000 - VIS A TETE HEXAGON.AVEC BRIDE

	P2R reference	187448
	Maker reference	864328

864328 - LLANTA TRAS.ATL.2T (WANFENG)

	P2R reference	187346
	Maker reference	00G01303191

00G01303191 - RONDELLE AXE ROUE AR. .ALEM

	P2R reference	187347
	Maker reference	00G01100121

00G01100121 - PAPILLON REGLAGE FREIN

	P2R reference	68814
	Maker reference	82907R

BRAKE SHOE SET REAR OEM PIAGGIO 50 ZIP 2T AR, 50-125 VESPA LX AR, TYPHOON, NRG, LYBERTY/GILERA 50 STALKER, RUNNER (D. 105)-82907R

	P2R reference	66055
	Maker reference	266724

266724-PLATE

	P2R reference	68017
	Maker reference	647384

SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384

	P2R reference	72646
	Maker reference	B014502

CAME OF BRAKE REAR OEM PIAGGIO 50 ZIP, TYPHOON, NRG, LIBERTY, FLY, VESPA LX, VESPA-S/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD-B014502

	P2R reference	110768
	Maker reference	B011784

SCREW FLANGE TH (6X27) OEM PIAGGIO COMMON A LA RANGE-B011784

	P2R reference	68791
	Maker reference	828862

NUT CARRE (D6) OEM PIAGGIO COMMON A LA RANGE-828862

	P2R reference	69060
	Maker reference	833428

LEVER DE CONTROL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-833428

	P2R reference	66124
	Maker reference	273419

GASKET CAME OF BRAKE REAR OEM PIAGGIO 50 COMMON A LA RANGE-273419

	P2R reference	189650
	Maker reference	194423

CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746

	P2R reference	189650
	Maker reference	1C004746

CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746

	P2R reference	187349
	Maker reference	00G01900101

00G01900101 - RESSORT

	P2R reference	66367
	Maker reference	414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

	P2R reference	187348
	Maker reference	00G05801101

00G05801101 - PLAQUETTE

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	65985
	Maker reference	242364

242364-ELASTIC RING
