Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 2T Bullet 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

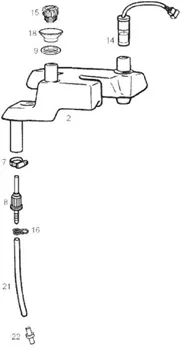

Châssis - parties plastiques - carrosseries : 02.52 RÉSERVOIR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1025/Atlantis_50_2T_Bullet_2010_02.52.png)
2 |
00G03702081 - RESERVOIR HUILE More informationQuantity required : 0 |
||||||
|
8 |
00G03700411-ENSEMBLE OIL FILTER More informationQuantity required : 0 |
||||||
|
9 |
00G06800641 - BUTEE RESERVOIR HUILE More informationQuantity required : 0 |
||||||
|
14 |
00G03706051-ENSEMBLE JAUGE D'HUILE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/9/img/63919.jpg)
15 |
CAP TANK D'HUILE OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006 >, RS 2006 > 2010-00F03710241 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
16 |
HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501 More informationQuantity required : 0 |
||||||
|
18 |
00G03702601 - ENTRÉE D'HUILE More informationQuantity required : 0 |
||||||
|
21 |
00G00400321 - TUYAU More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/9/8/img/64098.jpg)
22 |
00G03701031 - RACCORD ENTREE DIHUILE More informationQuantity required : 0 |
