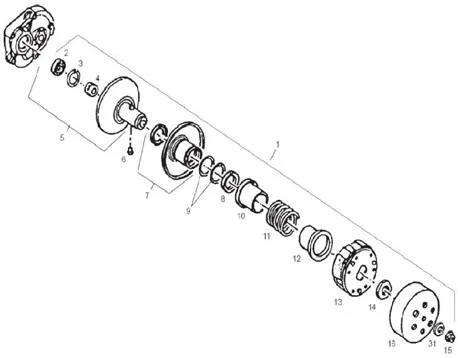

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 2T Bullet 2010

	P2R reference	73026
	Maker reference	CM100109

PULLEY RECEPTRICE OEM PIAGGIO 50 TYPHOON 2006 > 2010, NRG 2005 >, ZIP 2000 >, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >/GILERA 50 RUNNER 2005 >, DNA 2006 >/APRILIA 50 SR H2O 2004 >-CM100109

	P2R reference	68608
	Maker reference	82655R

BEARING (12X24X6) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T ET 4T-82655R

	P2R reference	63820
	Maker reference	0066245

CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE 27M-006624

	P2R reference	66238
	Maker reference	289952

CAGE A AIGUILLES/BUSH DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289952

	P2R reference	66580
	Maker reference	4795526

HALF PULLEY OEM PIAGGIO (25KM/H) COMMON A LA RANGE SCOOTER 50 CC-4795526

	P2R reference	66622
	Maker reference	482766

PIVOT/GUIDE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-482766

	P2R reference	68715
	Maker reference	827893

HALF PULLEY RECEPTRICE MOBILE DE VARIATOR OEM PIAGGIO 50 COMMON A LA RANGE-827893

	P2R reference	66237
	Maker reference	289950

289950-BUSH

	P2R reference	66231
	Maker reference	289840

GASKET CLUTCH OEM PIAGGIO 50-125 COMMON A LA RANGE-289840

	P2R reference	66632
	Maker reference	483443

CUP LOGEMENT SPRING COTE PULLEY CLUTCH OEM PIAGGIO 50 COMMON A LA RANGE-483443

	P2R reference	66542
	Maker reference	478028

SPRING CORRECTEUR DE COUPLE OEM PIAGGIO 50 TYPHOON, NRG, ZIP, LIBERTY, VESPA LX, VESPA-S/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR MOTARD-478028

	P2R reference	66764
	Maker reference	487935

CUP LOGEMENT SPRING COTE CLUTCH OEM PIAGGIO 50 COMMON A LA RANGE-487935

	P2R reference	73031
	Maker reference	CM1002045

GROUP CLUTCH OEM PIAGGIO 50 FLY, NRG, ZIP, TYPHOON, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >/GILERA 50 RUNNER/APRILIA 50 SR H2O-CM1002045

	P2R reference	66239
	Maker reference	289955

NUT CLUTCH OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-289955

	P2R reference	66225
	Maker reference	289519

NUT DE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289519

	P2R reference	66235
	Maker reference	289933

BELL/TAMBOUR CLUTCH OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289933

	P2R reference	66049
	Maker reference	265300

WASHER DE PULLEY MOTRICE (23X15X0, 5) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T ET 4T-265300
