Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 2T Bullet 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

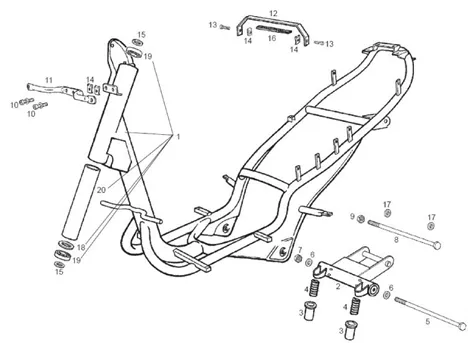

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1025/Atlantis_50_2T_Bullet_2010_02.01.png)
1 |
00G01925601 - CADRE COMPLET More informationQuantity required : 0 |
||||||
|
2 |
00G048059615 - ENSEM.SUP.MOTEUR A/SILENTB. More informationQuantity required : 0 |
||||||
|
3 |
00G06300571-PROTEC. SPRING AMORT. SUPP. MOTE More informationQuantity required : 0 |
||||||
|
4 |
00G01501511-SPRING SHOCK ABSORBER BRACKET MO More informationQuantity required : 0 |
||||||
|
5 |
00G03001271-BOLT DE SERRAGE ENGINE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/7/img/63597.jpg)
6 |
WASHER PLATE (10. 6X20. 7X1. 8) OEM PIAGGIO COMMON A LA RANGE-00000031100 More informationQuantity required : 0 |
||||||
|
7 |
|
||||||
|
8 |
00G02500271 - VIS TETE CREUSE 10M150X45D912 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
9 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
10 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081 More informationQuantity required : 0 |
||||||
|
11 |
00G04802891A-SOPTE. ESCUDO FRONTAL ATLANTIS (C) More informationQuantity required : 0 |
||||||
|
12 |
00G01403301 - S-ENS.PONT FIX. PORTE-PAQ. More informationQuantity required : 0 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/2/img/63672.jpg)
15 |
WASHER DE SET OF STEERING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA SX, RX-00008902630 More informationQuantity required : 0 |
||||||
|
16 |
00G06200151 - BUTÉE RÉSERVOIR HUILE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/9/img/63789.jpg)
17 |
WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001 More informationQuantity required : 0 |
||||||
|
18 |
00G06500451 - RONDELLE COUSSINET TUBE DIRECT More informationQuantity required : 0 |
||||||
|
19 |
00057000500 - COUSSINET 6005 25-47-12 2RS More informationQuantity required : 0 |
||||||
|
20 |
00G06302401-TUBE SEP. BEARING STEERING More informationQuantity required : 0 |
