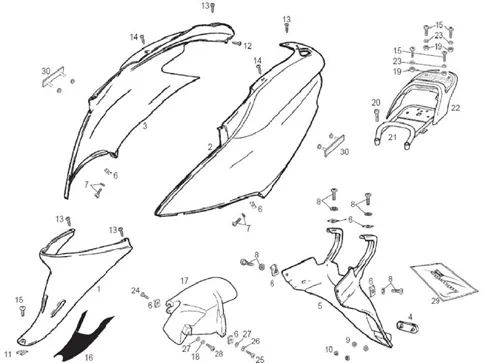

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 2T Bullet 2010

	P2R reference	187425
	Maker reference	86690000W2N

86690000W2N - PROTECTION INF.SELLE

	P2R reference	187426
	Maker reference	86691000WB15

86691000WB15 - COUVERCLE LATERAL GAU

	P2R reference	187427
	Maker reference	86691000WA75

86691000WA75 - COUVERCLE LATERAL GAU

	P2R reference	187428
	Maker reference	86691000WN55

86691000WN55 - COUVERCLE LATERAL GAU

	P2R reference	187429
	Maker reference	86691000WY35

86691000WY35 - COUVERCLE LATERAL GAU

	P2R reference	187430
	Maker reference	86690900WB15

86690900WB15 - COUVERCLE LATERAL DR.

	P2R reference	187431
	Maker reference	86690900WY35

86690900WY35 - COUVERCLE LATERAL DR.

	P2R reference	187432
	Maker reference	86690900WA75

86690900WA75 - COUVERCLE LATERAL DR.

	P2R reference	187433
	Maker reference	86690900WN55

86690900WN55 - COUVERCLE LATERAL DR.

	P2R reference	71568
	Maker reference	AP8124718

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

	P2R reference	187434
	Maker reference	00G01507863

00G01507863-SUPPL. DE GUARD-MUD REAR H.

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63678
	Maker reference	000110325015

SCREW PARKER (3, 6X25) CRUCIFORME DE HEADLAMP FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >-00011032501

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	63682
	Maker reference	000110516015

00011051601 - VIS TARAUD 5,1X16 NOIR CL89H

	P2R reference	63702
	Maker reference	000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

	P2R reference	187385
	Maker reference	00G04607501

00G04607501 - ADHESIF

	P2R reference	187384
	Maker reference	00G00704141

00G00704141 - GARDE-BOUE ARRIERE

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63576
	Maker reference	000000048305

00000004830-BOLT HEAD HEX. 8M125X30 D933

	P2R reference	63983
	Maker reference	00G01409191A

00G01409191A - ENSAMBLE PORTE-PAQUET AR.

	P2R reference	187435
	Maker reference	86366400W2N

86366400W2N - PORTE-BAGAGES

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	67113
	Maker reference	575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

	P2R reference	63753
	Maker reference	000920635145

00092063514-SCREW

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	187436
	Maker reference	867177

867177 - KIT PLAQUE

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752
