Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

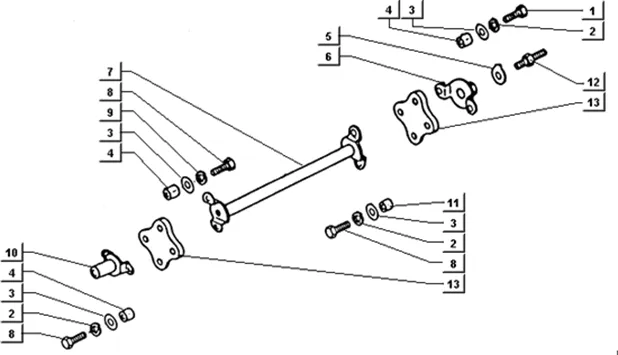

Transmisisons : T135 ARBRE DE TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/330/Ape_TM_703_Diesel_422CC_1997-2004_T135_20251008100626.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
1 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
2 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
3 |
WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/1/img/65961.jpg)
4 |
231027-SPACER More informationQuantity required : 6 |
||||||
5 |
232186 WASHER More informationQuantity required : 1 |
||||||
|
6 |
232185 ACCOUPLEMENT PUMP HYDRAULIQUE More informationQuantity required : 1 |
||||||
|
7 |
232180 - ARBRE More informationQuantity required : 1 |
||||||
|
8 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 6 |
||||||
|
9 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
|
10 |
232183 ACCOUPLEMENT PUMP HYDRAULIQUE More informationQuantity required : 1 |
||||||
|
11 |
231027-SPACER More informationQuantity required : 2 |
||||||
|
12 |
232187 - VIS More informationQuantity required : 1 |
||||||
|
13 |
230971 ACCOUPLEMENT More informationQuantity required : 1 |
