Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

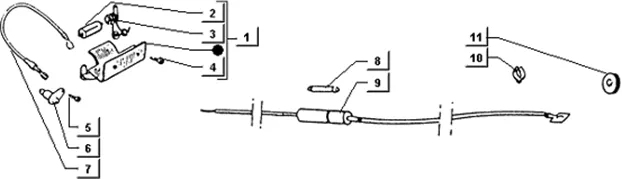

Connexions électriques : T129 INSTALLATION ECLAIRAGE INT. FOURGON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/330/Ape_TM_703_Diesel_422CC_1997-2004_T129_20251008095842.PNG)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
2 |
AMPOULE/LAMPE 12V 5W NAVETTE OEM PIAGGIO COMMON A LA RANGE-071633 More informationQuantity required : 1 |
||||||
|
3 |
056825 GUIDE CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/2/img/65712.jpg)
4 |
SCREW CRUCIFORME (3. 5X9. 5) TARAUD OEM PIAGGIO COMMON A LA RANGE-121668 More informationQuantity required : 2 |
||||||
|
5 |
|
||||||
|
6 |
008103 CONTACTEUR S00810300 More informationQuantity required : 2 |
||||||
|
7 |
117660 CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/4/img/65604.jpg)
8 |
FUSE ROUND 8A OEM PIAGGIO COMMON A LA RANGE-0249672 More informationQuantity required : 1 |
||||||
|
9 |
216777 CABLE More informationQuantity required : 1 |
||||||
|
10 |
194945-CLIPS More informationQuantity required : 8 |
