Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

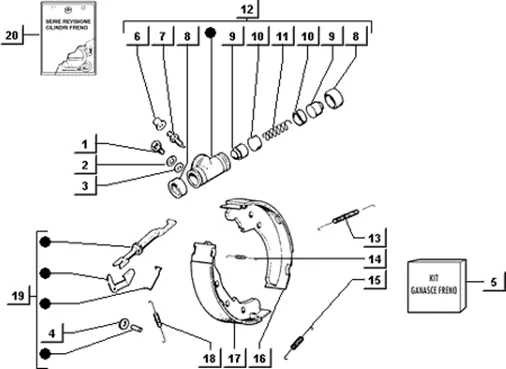

Roues : T82 CYLINDRES FREIN AV.-MÂCHOIRES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/330/Ape_TM_703_Diesel_422CC_1997-2004_T82_20251008100702.PNG)
1 |
030052-SCREW S03005200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
2 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
3 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/9/img/65959.jpg)
4 |
WASHER BRAKE OEM PIAGGIO COMMON A TOUTE LA RANGE-230359 More informationQuantity required : 1 |
||||||
|
5 |
154991 SERIE MACHOIRE BRAKE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
6 |
063435-CAPUCHON More informationQuantity required : 1 |
||||||
|
7 |
109889 SCREW More informationQuantity required : 1 |
||||||
|
8 |
119330 PROTECTOR More informationQuantity required : 1 |
||||||
|
9 |
PISTON |
||||||
|
10 |
GARNITURE |
||||||
|
11 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/1/2/img/115812.jpg)
12 |
CYLINDER DE FRONT WHEEL OEM PIAGGIO THREE-WHEELER APE TM703 1989 > 2004-2451942 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/7/8/img/111378.jpg)
13 |
SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/8/7/img/111587.jpg)
14 |
SPRING DE BRAKE SHOE SET (L 30, 5) OEM PIAGGIO THREE-WHEELER APE POKER, TM 703-225549 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/3/7/img/111637.jpg)
15 |
SPRING DE BRAKE SHOE SET (L60. 5) OEM PIAGGIO THREE-WHEELER APE TM 703, POKER-178750 More informationQuantity required : 1 |
||||||
|
16 |
MACHOIRE AVT |
||||||
|
17 |
154991 SERIE MACHOIRE BRAKE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/9/img/111439.jpg)
18 |
SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/3/img/116453.jpg)
19 |
GROUP OF ADJUSTMENT OF SET OF BRAKE REAR LEFT OEM PIAGGIO TRIPOREUR APE 7M703-644326 More informationQuantity required : 1 |
||||||
|
20 |
SERIE DE COUPELLES |
