Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004 PIAGGIO VU

Connexions électriques : T120 DISPOSITIF COMMANDE PRECHAUFFAGE-REGULATEUR DE TENSION-TELERUPTEUR

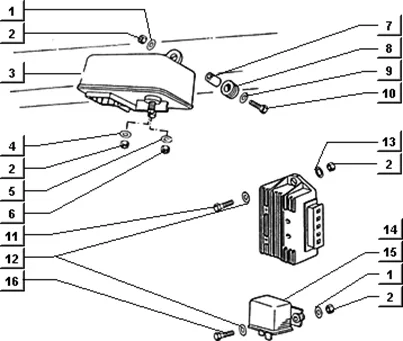

Dispositif commande prechauffage-regulateur de tension-telerupteur
Search
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

1
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 3

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

2
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 6

291007 - RELAIS PRECHAUFFAGE ATD

3
P2R reference P2R reference 120880
Maker reference Maker reference 291007

291007 - RELAIS PRECHAUFFAGE ATD

More information

Quantity required : 1

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

4
P2R reference P2R reference 63841
Maker reference Maker reference 0069765

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

More information

Quantity required : 1

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

5
P2R reference P2R reference 63840
Maker reference Maker reference 0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

More information

Quantity required : 1

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

6
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 1

231908 - ENTRETOISE

7
P2R reference P2R reference 110309
Maker reference Maker reference 231908

231908 SPACER

More information

Quantity required : 1

401605 - SILENBLOC

8
P2R reference P2R reference 66347
Maker reference Maker reference 401605

401605-SILENBLOC

More information

Quantity required : 1

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

9
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 2

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

10
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

More information

Quantity required : 1

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

11
P2R reference P2R reference 65639
Maker reference Maker reference 0310885

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

More information

Quantity required : 2

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

12
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 6

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

13
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 2

1R000002 - REGULATEUR

14
P2R reference P2R reference 122492
Maker reference Maker reference 1R000002

1R000002 - REGULATEUR

More information

Quantity required : 1

218824 - TELERUPTEUR

15
P2R reference P2R reference 65939
Maker reference Maker reference 218824

218824-TELERUPTEUR

More information

Quantity required : 1

031084 - BOULON

16
P2R reference P2R reference 65636
Maker reference Maker reference 0310845

031084-BOLT

More information

Quantity required : 2
