Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

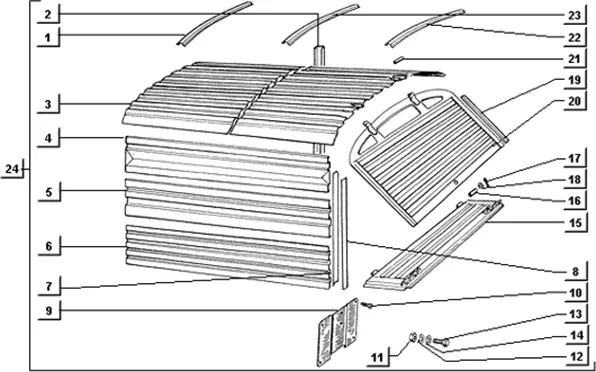

Châssis : T125 FOURGON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/330/Ape_TM_703_Diesel_422CC_1997-2004_T125_20251008100826.PNG)
1 |
162549 - RESSORT More informationQuantity required : 2 |
||||||
|
1 |
RESSORT |
||||||
|
1 |
RENFORT CENTRAL |
||||||
|
2 |
162548 CLIQUET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
2 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 8 |
||||||
|
2 |
ETAI CENTRAL |
||||||
|
3 |
017718 - GOUPILLE More informationQuantity required : 2 |
||||||
|
3 |
031117-BOLT S03111700 More informationQuantity required : 8 |
||||||
|
3 |
2526625 - PADIGLIONE CON More informationQuantity required : 2 |
||||||
|
4 |
|
||||||
|
4 |
162546 SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
4 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 6 |
||||||
|
5 |
|
||||||
|
5 |
230648 BUTTON More informationQuantity required : 4 |
||||||
|
5 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 6 |
||||||
|
6 |
|
||||||
|
6 |
INSONORIZZAZIO |
||||||
|
6 |
031117-BOLT S03111700 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
7 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 4 |
||||||
|
7 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
||||||
|
7 |
2143075 ETAI AR INT G More informationQuantity required : 1 |
||||||
|
7 |
2464035 - ETAI AR INT D More informationQuantity required : 1 |
||||||
|
8 |
212558 COVER More informationQuantity required : 2 |
||||||
|
8 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
|
8 |
CORNIERE AR EXT G |
||||||
|
8 |
2143065 CORNIERE REAR OUTER D More informationQuantity required : 1 |
||||||
|
9 |
ABATTANT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
9 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 1 |
||||||
|
9 |
PLAQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
10 |
SCREW PARKER (4. 8X9. 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008265 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
10 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
11 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 4 |
||||||
|
11 |
127046 BUFFER More informationQuantity required : 2 |
||||||
|
12 |
003055-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
12 |
CLIPS OEM PIAGGIO COMMON A LA RANGE-005967 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/8/img/65338.jpg)
13 |
SCREW HEAD FENDUE (5X14) OEM PIAGGIO COMMON A LA RANGE-010047 More informationQuantity required : 4 |
||||||
|
13 |
VERIN A THROTTLE DE HAYON OEM PIAGGIO THREE-WHEELER APE-56606R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
14 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
14 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
|
15 |
2143147 LID More informationQuantity required : 1 |
||||||
|
16 |
017702 GOUPILLE ELASTIC More informationQuantity required : 2 |
||||||
|
17 |
B005668 GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/8/img/63778.jpg)
18 |
WASHER PLATE (7X12. 7. 1) OEM PIAGGIO COMMON A LA RANGE-003057 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/7/5/img/116375.jpg)
19 |
GASKET OF VITRE OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-CM255506 More informationQuantity required : 1 |
||||||
|
20 |
2143215 LID More informationQuantity required : 1 |
||||||
|
21 |
017701 FICHE S01770100 More informationQuantity required : 2 |
||||||
|
22 |
PROFIL |
||||||
|
23 |
1291595 RENFORT More informationQuantity required : 2 |
||||||
|
24 |
2526505 - FURGONE COMPL. More informationQuantity required : 1 |
