Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

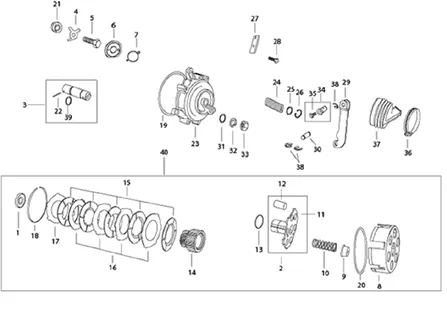

Moteur : 01.30 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_01.30_20251008084850.png)
1 |
652124 SPACER More informationQuantity required : 1 |
||||||
|
2 |
1F000755 HUB CLUTCH More informationQuantity required : 1 |
||||||
|
3 |
1A001457 ROD CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/5/8/img/110058.jpg)
4 |
WASHER CLUTCH PALIER DE POUSSEE OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017, CLASSIC 2014 >-129012013 More informationQuantity required : 1 |
||||||
|
5 |
E47177007 SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/1/6/9/img/154169.jpg)
6 |
PALIER DE POUSSEE CLUTCH OEM PIAGGIO THREE-WHEELER APE CALESSINO 2017 > 2019/CLASSIC E4 2017 > 1A011547R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/3/img/66173.jpg)
7 |
CLIPS/CIRCLIPS CLUTCH OEM PIAGGIO THREE-WHEELER APE CALESSINO 2017 > 2019/CLASSIC 2017 > 2023-286406 More informationQuantity required : 1 |
||||||
|
8 |
1A001455 BELL CLUTCH More informationQuantity required : 1 |
||||||
|
9 |
CUP DE SPRING CLUTCH OEM PIAGGIO TRIPORTER APE CALESSINO 2013 > 2019, CLASSIC 2014 >-127757011 More informationQuantity required : 1 |
||||||
|
10 |
CUP DE SPRING CLUTCH OEM PIAGGIO TRIPORTER APE CALESSINO 2013 > 2019, CLASSIC 2014 >-127757011 More informationQuantity required : 1 |
||||||
|
11 |
1F000755 HUB CLUTCH More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
|
13 |
127758015 WASHER More informationQuantity required : 1 |
||||||
|
14 |
1F000754 GEAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/8/9/img/111889.jpg)
15 |
DISC CLUTCH MENE OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017, CLASSIC 2014 >-127530011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/0/3/img/111003.jpg)
16 |
DISC CLUTCH MENANT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2019, CLASSIC 2014 >-127692015 More informationQuantity required : 1 |
||||||
|
17 |
127693019 PLATE More informationQuantity required : 1 |
||||||
|
18 |
ANNEAU/CLIPS CLUTCH OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2019, CLASSIC 2014 >-127754019 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/0/2/img/110402.jpg)
19 |
GASKET COVER CLUTCH OEM PIAGGIO THREE-WHEELER APE CLASSIC 2014 >-825123207 More informationQuantity required : 1 |
||||||
|
20 |
1A005414R BUSH BUT. DISQ. EMBR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/6/4/img/110364.jpg)
21 |
SPACER CLUTCH OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017, CLASSIC 2014 >-129011019 More informationQuantity required : 1 |
||||||
|
22 |
822031942 GOUPILLE ELASTIC More informationQuantity required : 1 |
||||||
|
23 |
127794019 COVER CLUTCH More informationQuantity required : 1 |
||||||
|
24 |
127185012 SPRING More informationQuantity required : 1 |
||||||
|
25 |
120164019 WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/2/9/img/111129.jpg)
26 |
CLIPS/CIRCLIPS CLUTCH OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2023-842001600 More informationQuantity required : 1 |
||||||
|
27 |
127471019 LEVER D'EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
28 |
SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092 More informationQuantity required : 1 |
||||||
|
29 |
127460010 LEVER More informationQuantity required : 1 |
||||||
|
30 |
127013013 PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
31 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
32 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
33 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
|
34 |
B024379 TERMINAL More informationQuantity required : 1 |
||||||
|
35 |
120238016 SCREW More informationQuantity required : 1 |
||||||
|
36 |
120170018 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/4/8/img/111448.jpg)
37 |
SOUFFLET CLUTCH OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >, CLASSIC 2014 >-127012019 More informationQuantity required : 1 |
||||||
|
38 |
843000809 ANNEAU More informationQuantity required : 1 |
||||||
|
39 |
825120308 O-RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/1/7/4/img/154174.jpg)
40 |
CLUTCH COMPLETE OEM PIAGGIO THREE-WHEELER APE CLASSIC 2017 > 07/2019-1F000832 More informationQuantity required : 1 |
