Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

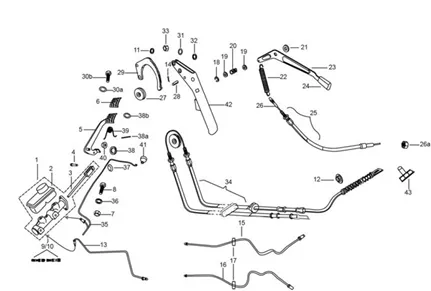

Instalation du freins - transmisisons : 05.05 SYSTÈME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_05.05_20251008085114.png)
1 |
604615 PUMP BRAKE More informationQuantity required : 1 |
||||||
|
2 |
587773 TANK OIL More informationQuantity required : 1 |
||||||
|
3 |
587702 PUMP FREINS More informationQuantity required : 1 |
||||||
|
4 |
604760 PEDAL OF BRAKE More informationQuantity required : 1 |
||||||
|
5 |
567461 BUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
6 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
7 |
SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-031122 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
|
9 |
|
||||||
|
10 |
|
||||||
|
11 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
|
12 |
604502 CAP More informationQuantity required : 2 |
||||||
|
13 |
660333 HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/3/img/65353.jpg)
14 |
GOUPILLE (1. 2X12) OEM PIAGGIO COMMON A LA RANGE-012761 More informationQuantity required : 1 |
||||||
|
15 |
644813 HOSE OF BRAKE REAR WHEEL LEFT More informationQuantity required : 1 |
||||||
|
16 |
644812 HOSE OF BRAKE REAR WHEEL RIGHT More informationQuantity required : 1 |
||||||
|
17 |
116971 GARNITURE (ABOLI WITHOUT REMPLACEMENT) More informationQuantity required : 1 |
||||||
|
18 |
005969 CIRCLIPS S00596900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/4/img/63804.jpg)
19 |
WASHER PLATE (10. 5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-006173 More informationQuantity required : 1 |
||||||
|
20 |
108785 SPRING More informationQuantity required : 1 |
||||||
|
21 |
B042317 SPACER More informationQuantity required : 1 |
||||||
|
22 |
567690 SPRING More informationQuantity required : 1 |
||||||
|
23 |
125411 LEVER More informationQuantity required : 1 |
||||||
|
24 |
604717 POMELLO More informationQuantity required : 1 |
||||||
|
25 |
660356 TRANSMISSION More informationQuantity required : 1 |
||||||
|
26 |
660358 TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
26a |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 2 |
||||||
|
27 |
567898 PULLEY More informationQuantity required : 1 |
||||||
|
28 |
567899 PULLEY More informationQuantity required : 1 |
||||||
|
29 |
B042794R SECTEUR More informationQuantity required : 1 |
||||||
|
30a |
140728 WASHER 8. 5 X 24 X 3 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
30b |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 1 |
||||||
|
31 |
WASHER PLATE (10. 5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-006173 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/1/img/63811.jpg)
32 |
CIRCLIPS SPROCKET DE KICK OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX 2011 >-006411 More informationQuantity required : 1 |
||||||
|
33 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
||||||
|
34 |
660341 TRANSMISSION More informationQuantity required : 1 |
||||||
|
35 |
568161 HOSE More informationQuantity required : 1 |
||||||
|
36 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/7/7/img/109777.jpg)
37 |
CLIPS/CIRCLIPS (17. 5X14. 6X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-006414 More informationQuantity required : 1 |
||||||
|
38 |
843000809 ANNEAU More informationQuantity required : 1 |
||||||
|
38a |
568737 GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
38b |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
|
39 |
587928 SPRING More informationQuantity required : 1 |
||||||
|
40 |
229524 WASHER More informationQuantity required : 1 |
||||||
|
41 |
138237 CAPUCHON More informationQuantity required : 1 |
||||||
|
42 |
567746G1 LEVER DU BRAKE More informationQuantity required : 1 |
||||||
|
43 |
119278 EMBOUT More informationQuantity required : 1 |
