Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

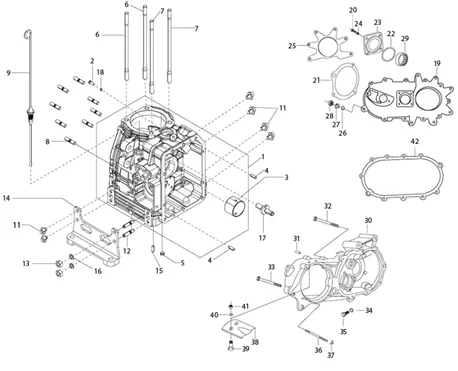

Moteur : 01.03 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_01.03_20251008084719.png)
1 |
E10A010006 CASING CPL More informationQuantity required : 1 |
||||||
|
2 |
ED43340 SCREW More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
4 |
E276846055 STUD More informationQuantity required : 2 |
||||||
|
5 |
E500197087 BOLT D'HUILE More informationQuantity required : 2 |
||||||
|
6 |
E43500539 STUD More informationQuantity required : 2 |
||||||
|
7 |
E43500540 STUD More informationQuantity required : 2 |
||||||
|
8 |
E271678054 STUD More informationQuantity required : 7 |
||||||
|
9 |
E10G090002 ROD NIVEAU OIL More informationQuantity required : 1 |
||||||
|
11 |
E50002805 SCREW More informationQuantity required : 2 |
||||||
|
12 |
E50000506 STUD More informationQuantity required : 2 |
||||||
|
13 |
E45324016 NUT More informationQuantity required : 2 |
||||||
|
14 |
E400106100 ENGINE BRACKET More informationQuantity required : 2 |
||||||
|
15 |
E500843036 STUD More informationQuantity required : 1 |
||||||
|
16 |
E1756507 WASHER More informationQuantity required : 2 |
||||||
|
17 |
ED30956 NOIX More informationQuantity required : 1 |
||||||
|
18 |
ED40642 WASHER More informationQuantity required : 1 |
||||||
|
19 |
1F0007564 COVER More informationQuantity required : 1 |
||||||
|
20 |
B017088 SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/1/1/1/img/154111.jpg)
21 |
CYLINDER BASE GASKET DE CYLINDER OEM PIAGGIO THREE-WHEELER APE CLASSIC 2017 >-129001014 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/5/3/img/110053.jpg)
22 |
O RING OF COVER ENGINE OEM PIAGGIO THREE-WHEELER APE 400 2019-2023-825420215 More informationQuantity required : 1 |
||||||
|
23 |
520221019R PLATTE More informationQuantity required : 1 |
||||||
|
24 |
807000647 WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/3/2/img/111032.jpg)
25 |
GASKET CASING 6 TROUS OEM PIAGGIO THREE-WHEELER APE CLASSIC 2014 >-B001501 More informationQuantity required : 1 |
||||||
|
26 |
808000826 WASHER PLATE More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
27 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 11 |
||||||
|
28 |
015335 NUT S01533500 More informationQuantity required : 11 |
||||||
|
29 |
120212012 CAGE A AIGU More informationQuantity required : 1 |
||||||
|
30 |
127119013 - COUVERCLE TRANSMISSION More informationQuantity required : 1 |
||||||
|
31 |
127102010 GRAIN DE REFERENCE More informationQuantity required : 2 |
||||||
|
32 |
B042799 SCREW More informationQuantity required : 9 |
||||||
|
33 |
B042798 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
34 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
|
35 |
811081025 SCREW More informationQuantity required : 1 |
||||||
|
36 |
819064530 SCREW M6X45 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
37 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 6 |
||||||
|
38 |
127911019 DEFLECTOR More informationQuantity required : 1 |
||||||
|
39 |
567741 SCREW More informationQuantity required : 2 |
||||||
|
40 |
127912013 SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
41 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/8/8/img/112188.jpg)
42 |
GASKET CASING TRANSMISSION OEM PIAGGIO THREE-WHEELER APE CLASSIC 2014 >-B001844 More informationQuantity required : 1 |
