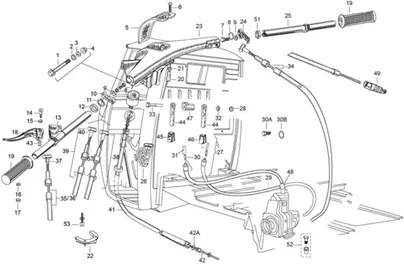

Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 E4 2017-2018 PIAGGIO VU

Guidon/direction : 03.05 GUIDON
Guidon
Search
SCREW TH (10X70) OEM PIAGGIO COMMON A LA RANGE-030103

1
P2R reference P2R reference 111322
Maker reference Maker reference 0301035

SCREW TH (10X70) OEM PIAGGIO COMMON A LA RANGE-030103

More information

Quantity required : 1

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

2
P2R reference P2R reference 65423
Maker reference Maker reference 0166265

WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626

More information

Quantity required : 2

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

3
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 1

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

4
P2R reference P2R reference 65465
Maker reference Maker reference 0201105

NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110

More information

Quantity required : 1

604543 - COUVERCLE

5
P2R reference P2R reference 112516
Maker reference Maker reference 604543

B041600 COVER

More information

Quantity required : 1

632158 - VIS

6
P2R reference P2R reference 115360
Maker reference Maker reference 632158

632158 SCREW

More information

Quantity required : 1

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

7
P2R reference P2R reference 65640
Maker reference Maker reference 0310895

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

More information

Quantity required : 2

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

8
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 2

WASHER PLATE (6. 4X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-006125

9
P2R reference P2R reference 63803
Maker reference Maker reference 0061255

WASHER PLATE (6. 4X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-006125

More information

Quantity required : 2

109775 - LEVIER

10
P2R reference P2R reference 115569
Maker reference Maker reference 109775

109775 LEVER

More information

Quantity required : 1

WASHER ELASTIC (D22) HANDLEBAR OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 >, CLASSIC 2006 >-060565

11
P2R reference P2R reference 65656
Maker reference Maker reference 0605655

WASHER ELASTIC (D22) HANDLEBAR OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 >, CLASSIC 2006 >-060565

More information

Quantity required : 1

109404 - RONDELLE

12
P2R reference P2R reference 111356
Maker reference Maker reference 109404

109404 WASHER

More information

Quantity required : 1

13
P2R reference P2R reference
Maker reference Maker reference 1274515

018517 - VIS

14
P2R reference P2R reference 65436
Maker reference Maker reference 0185175

018517 - VIS

More information

Quantity required : 1

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

15
P2R reference P2R reference 63839
Maker reference Maker reference 0069685

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

More information

Quantity required : 1

016620 - RONDELLE

16
P2R reference P2R reference 134585
Maker reference Maker reference 0166205

016620 WASHER

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138

17
P2R reference P2R reference 111436
Maker reference Maker reference 0121385

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138

More information

Quantity required : 1

164906 - LEVIER

18
P2R reference P2R reference 112414
Maker reference Maker reference 164906

164906 LEVER

More information

Quantity required : 1

141925 - POIGNEE EX 060304

19
P2R reference P2R reference 114691
Maker reference Maker reference 141925

141925 GRIP EX 060304

More information

Quantity required : 2

197071 - VIS

20
P2R reference P2R reference 110211
Maker reference Maker reference 197071

197071 SCREW

More information

Quantity required : 2

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

21
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 2

126902 - COLLARINO

22
P2R reference P2R reference 110389
Maker reference Maker reference 126902

126902 COLLARINO

More information

Quantity required : 1

B075772ED - GUIDON

23
P2R reference P2R reference 154248
Maker reference Maker reference B075772ED

B075772ED HANDLEBAR

More information

Quantity required : 1

24
P2R reference P2R reference
Maker reference Maker reference 1096355

587902 - TUYAU

25
P2R reference P2R reference 113825
Maker reference Maker reference 587902

587902 HOSE

More information

Quantity required : 1

109227 - MANCHON

26
P2R reference P2R reference 112203
Maker reference Maker reference 109227

109227 SLEEVE

More information

Quantity required : 1

660349 - CABLE FERMETURE DE GAZ

27
P2R reference P2R reference 154249
Maker reference Maker reference 660349

660349 CABLE LATCH DE THROTTLE

More information

Quantity required : 1

002438 - ECROU S00243800

28
P2R reference P2R reference 109874
Maker reference Maker reference 0024385

002438 NUT S00243800

More information

Quantity required : 1

660350 - CABLE FERMETURE DE GAZ

29
P2R reference P2R reference 112009
Maker reference Maker reference 660350

660350 - CABLE FERMETURE DE GAZ

More information

Quantity required : 1

B001518 - TRANSMISSION

30
P2R reference P2R reference 114498
Maker reference Maker reference B001518

B001518 TRANSMISSION

More information

Quantity required : 1

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

30A
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 2

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

30B
P2R reference P2R reference 65644
Maker reference Maker reference 0311165

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

More information

Quantity required : 2

660351 - TRANSMISSION EMBRAYAGE

31
P2R reference P2R reference 154250
Maker reference Maker reference 660351

660351 TRANSMISSION CLUTCH

More information

Quantity required : 1

WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608

32
P2R reference P2R reference 63844
Maker reference Maker reference 0076085

WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608

More information

Quantity required : 1

SCREW TH (8X55) OEM PIAGGIO COMMON A LA RANGE-030077

33
P2R reference P2R reference 110507
Maker reference Maker reference 0300775

SCREW TH (8X55) OEM PIAGGIO COMMON A LA RANGE-030077

More information

Quantity required : 1

CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO APE 400 E4 2017-2023-660353

34
P2R reference P2R reference 114432
Maker reference Maker reference 660353

CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO APE 400 E4 2017-2023-660353

More information

Quantity required : 1

660354 - CABLE GAZ

34
P2R reference P2R reference 154251
Maker reference Maker reference 660354

660354 CABLE THROTTLE

More information

Quantity required : 1

604779 - TRANSMISSION EMBRAYAGE

35
P2R reference P2R reference 154252
Maker reference Maker reference 604779

604779 TRANSMISSION CLUTCH

More information

Quantity required : 1

660342 - TRANSMISSION EMBR.

35
P2R reference P2R reference 116293
Maker reference Maker reference 660342

660342 TRANSMISSION EMBR.

More information

Quantity required : 1

36
P2R reference P2R reference
Maker reference Maker reference B0015445

B001545 - TRANSMISSION

36
P2R reference P2R reference 154253
Maker reference Maker reference B001545

B001545 TRANSMISSION

More information

Quantity required : 1

587806 - TRANSMISSION EMBRAYAGE

37
P2R reference P2R reference 154254
Maker reference Maker reference 587806

587806 TRANSMISSION CLUTCH

More information

Quantity required : 1

660343 - CABLE VEL.

38
P2R reference P2R reference 114879
Maker reference Maker reference 660343

CABLE/CONTROL/TRANSMISSION DE BOX OF SPEED (2) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2014 > 2017-660343

More information

Quantity required : 1

660345 - TRANSMISSION

39
P2R reference P2R reference 154255
Maker reference Maker reference 660345

660345 TRANSMISSION

More information

Quantity required : 1

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

40
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 2

660340 - CABLE COMPTEUR KILOMETRIQUE

41
P2R reference P2R reference 116400
Maker reference Maker reference 660340

660340 CABLE INSTRUMENT CLUSTER KILOMETRIQUE

More information

Quantity required : 1

659805 - CABLE COMPTEUR KILOMETRIQUE

42
P2R reference P2R reference 142797
Maker reference Maker reference 659805

659805 CABLE INSTRUMENT CLUSTER KILOMETRIQUE

More information

Quantity required : 1

109329 - RONDELLE

42A
P2R reference P2R reference 65697
Maker reference Maker reference 109329

109329 - RONDELLE

More information

Quantity required : 4

125181 - ENTRETOISE

43
P2R reference P2R reference 113852
Maker reference Maker reference 125181

125181 SPACER

More information

Quantity required : 1

119928 - LEVIER

44
P2R reference P2R reference 154256
Maker reference Maker reference 119928

119928 - LEVIER

More information

Quantity required : 2

604716 - BOULE

45
P2R reference P2R reference 110097
Maker reference Maker reference 604716

604716 - BOULE

More information

Quantity required : 1

604715 - BOULE

46
P2R reference P2R reference 142778
Maker reference Maker reference 604715

604715 BOULE

More information

Quantity required : 1

119181 - ENTRETOISE

47
P2R reference P2R reference 154257
Maker reference Maker reference 119181

119181 - ENTRETOISE

More information

Quantity required : 1

119278 - EMBOUT

48
P2R reference P2R reference 111039
Maker reference Maker reference 119278

119278 EMBOUT

More information

Quantity required : 1

SOUFFLET DE TRANSMISSION OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-118806

49
P2R reference P2R reference 113930
Maker reference Maker reference 118806

SOUFFLET DE TRANSMISSION OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-118806

More information

Quantity required : 1

587904 - RONDELLE

51
P2R reference P2R reference 110293
Maker reference Maker reference 587904

587904 WASHER

More information

Quantity required : 1

197071 - VIS

52
P2R reference P2R reference 110211
Maker reference Maker reference 197071

197071 SCREW

More information

Quantity required : 1

B024379 - TERMINAL

53
P2R reference P2R reference 154172
Maker reference Maker reference B024379

B024379 TERMINAL

More information

Quantity required : 1

All the exploded views of this vehicle

Filter :
Or choose :
