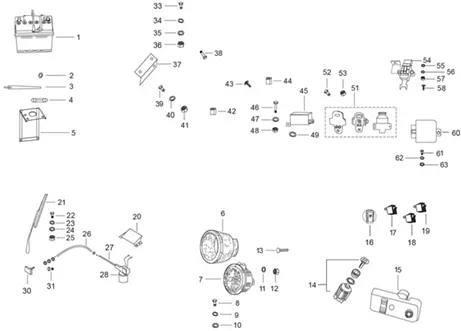

Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 E4 2017-2018 PIAGGIO VU

Installation électrique : 06.10 DISPOSITIFS ÉLECTRIQUES
Dispositifs électriques
Search
587650R - BATTERIE

1
P2R reference P2R reference 154283
Maker reference Maker reference 587650R

587650R - BATTERIE

More information

Quantity required : 1

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

2
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

More information

Quantity required : 2

632415 - COURROIE

3
P2R reference P2R reference 154284
Maker reference Maker reference 632415

632415 BELT

More information

Quantity required : 1

4
P2R reference P2R reference
Maker reference Maker reference 9255845

569166 - SUPPORT

5
P2R reference P2R reference 113621
Maker reference Maker reference 569166

569166 BRACKET

More information

Quantity required : 1

645041 - BOUCHON

6
P2R reference P2R reference 110292
Maker reference Maker reference 645041

645041 CAP

More information

Quantity required : 1

B041000R - AVERTISSEUR

7
P2R reference P2R reference 134811
Maker reference Maker reference B041000R

B041000R AVERTISSEUR

More information

Quantity required : 1

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

8
P2R reference P2R reference 65644
Maker reference Maker reference 0311165

SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116

More information

Quantity required : 1

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

9
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 1

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

10
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 1

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

11
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 1

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

12
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 1

13
P2R reference P2R reference
Maker reference Maker reference 156405

B024739 - CLE KIT

14
P2R reference P2R reference 154285
Maker reference Maker reference B024739

B024739 CLE KIT

More information

Quantity required : 1

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" APE, CALESSINO -B073366-

15
P2R reference P2R reference 116560
Maker reference Maker reference B073366

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" APE, CALESSINO -B073366

More information

Quantity required : 1

645153R - ALLUME CIGARE

16
P2R reference P2R reference 154277
Maker reference Maker reference 645153R

645153R ALLUME CIGARE

More information

Quantity required : 1

B003727 - RELAIS

17
P2R reference P2R reference 154286
Maker reference Maker reference B003727

B003727 - RELAIS

More information

Quantity required : 1

587670R - INTERRUPTEUR

18
P2R reference P2R reference 154245
Maker reference Maker reference 587670R

587670R INTERRUPTEUR

More information

Quantity required : 1

B076567 - INTERRUPTEUR ESSUIS GLACE

19
P2R reference P2R reference 154246
Maker reference Maker reference B076567

B076567 INTERRUPTEUR ESSUIS GLACE

More information

Quantity required : 1

569166 - SUPPORT

20
P2R reference P2R reference 113621
Maker reference Maker reference 569166

569166 BRACKET

More information

Quantity required : 1

632292 - BALAI D'ESSUIE-GLACES

21
P2R reference P2R reference 154287
Maker reference Maker reference 632292

632292A BALAI D'ESSUIE-GLACES

More information

Quantity required : 1

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

22
P2R reference P2R reference 65639
Maker reference Maker reference 0310885

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

More information

Quantity required : 6

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

23
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 6

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

24
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 6

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

25
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 6

604506 - TUYAU

26
P2R reference P2R reference 111696
Maker reference Maker reference 604506

604506 HOSE

More information

Quantity required : 1

B076573 - TUYAU

27
P2R reference P2R reference 154288
Maker reference Maker reference B076573

B076573 HOSE

More information

Quantity required : 1

B076574 - MOTEUR BALAI D'ESSUIEGLACES

28
P2R reference P2R reference 154289
Maker reference Maker reference B076574

B076574 ENGINE BALAI D'ESSUIEGLACES

More information

Quantity required : 1

B076304 - WHEEL BOX ASSLY

30
P2R reference P2R reference 154290
Maker reference Maker reference B076304

B076304 WHEEL BOX ASSLY

More information

Quantity required : 1

661925 - VIS

31
P2R reference P2R reference 109893
Maker reference Maker reference 661925

661925 SCREW

More information

Quantity required : 4

SCREW TH (5X16) OEM PIAGGIO COMMON A LA RANGE-031058

33
P2R reference P2R reference 65634
Maker reference Maker reference 0310585

SCREW TH (5X16) OEM PIAGGIO COMMON A LA RANGE-031058

More information

Quantity required : 2

003055 - RONDELLE

34
P2R reference P2R reference 63776
Maker reference Maker reference 0030555

003055-WASHER

More information

Quantity required : 4

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

35
P2R reference P2R reference 63837
Maker reference Maker reference 0069655

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

More information

Quantity required : 2

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

36
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 2

660109 - PLAQUETTE

37
P2R reference P2R reference 111276
Maker reference Maker reference 660109

660109 PLATE

More information

Quantity required : 1

38
P2R reference P2R reference
Maker reference Maker reference 84515

SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056

39
P2R reference P2R reference 65632
Maker reference Maker reference 0310565

SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056

More information

Quantity required : 2

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

40
P2R reference P2R reference 63837
Maker reference Maker reference 0069655

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

More information

Quantity required : 2

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

41
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 2

42
P2R reference P2R reference
Maker reference Maker reference 6045575

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

43
P2R reference P2R reference 65403
Maker reference Maker reference 0159115

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

More information

Quantity required : 1

567706 - FUSIBLE

44
P2R reference P2R reference 154291
Maker reference Maker reference 567706

567706 - FUSIBLE

More information

Quantity required : 1

RELAIS OEM PIAGGIO THREE-WHEELER APE CALESSINO, CLASSIC 2006 >-B023727R

45
P2R reference P2R reference 113354
Maker reference Maker reference B023727R

RELAIS OEM PIAGGIO THREE-WHEELER APE CALESSINO, CLASSIC 2006 >-B023727R

More information

Quantity required : 1

031057 - BOULON S03105700

46
P2R reference P2R reference 65633
Maker reference Maker reference 0310575

SCREW TH (5X14) OEM PIAGGIO COMMON A LA RANGE-031057

More information

Quantity required : 2

47
P2R reference P2R reference
Maker reference Maker reference 0125465

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

48
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 2

003055 - RONDELLE

49
P2R reference P2R reference 63776
Maker reference Maker reference 0030555

003055-WASHER

More information

Quantity required : 1

INTERRUPTEUR/BUTTON STOP OEM PIAGGIO THREE-WHEELER APE 50 2018 >, CALESSINO 2007 >, CLASSIC 2006 >-567498R

51
P2R reference P2R reference 111479
Maker reference Maker reference 567498R

INTERRUPTEUR/BUTTON STOP OEM PIAGGIO THREE-WHEELER APE 50 2018 >, CALESSINO 2007 >, CLASSIC 2006 >-567498R

More information

Quantity required : 1

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

52
P2R reference P2R reference 65408
Maker reference Maker reference 0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

More information

Quantity required : 2

568750 - VIS

52
P2R reference P2R reference 154292
Maker reference Maker reference 568750

568750 - VIS

More information

Quantity required : 2

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

53
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 2

B076115 - STARTER SAFETY SWITCH ASSLY.

54
P2R reference P2R reference 154293
Maker reference Maker reference B076115

B076115 STARTER SAFETY SWITCH ASSLY.

More information

Quantity required : 1

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

55
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

More information

Quantity required : 2

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

56
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

More information

Quantity required : 4

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

57
P2R reference P2R reference 65459
Maker reference Maker reference 0201045

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

More information

Quantity required : 2

B001503 - VIS

58
P2R reference P2R reference 109904
Maker reference Maker reference B001503

B001503 SCREW

More information

Quantity required : 2

B023726R - INTERMITTENCE

60
P2R reference P2R reference 115223
Maker reference Maker reference B023726R

B023726R INTERMITTENCE

More information

Quantity required : 1

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

61
P2R reference P2R reference 65639
Maker reference Maker reference 0310885

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

More information

Quantity required : 1

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

62
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

63
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 1

All the exploded views of this vehicle

Filter :
Or choose :
