Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

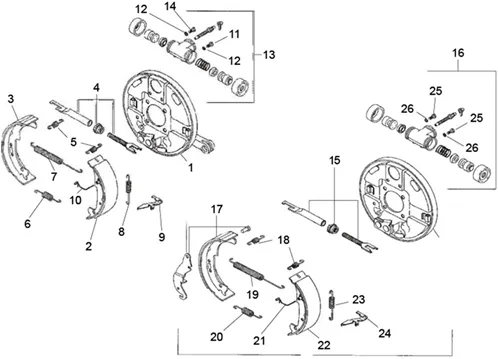

Transmisisons : 05.07 MACHOIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_05.07_20251008084617.PNG)
1 |
616541 DISC PATIN BRAKE More informationQuantity required : 1 |
||||||
|
2 |
B003784 PATIN BRAKE FRONT LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/0/img/151190.jpg)
3 |
MACHOIRES OF BRAKE FRONT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940004 More informationQuantity required : 1 |
||||||
|
4 |
179056 FORK COMPLETE More informationQuantity required : 1 |
||||||
|
5 |
602497 PINCE DE RETENUE MACHOIRES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/3/3/img/110533.jpg)
6 |
SPRING DE BRAKE SHOE SET OEM PIAGGIO THREE-WHEELER APE-116088 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/7/8/img/111378.jpg)
7 |
SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038 More informationQuantity required : 1 |
||||||
|
8 |
178808R SPRING More informationQuantity required : 1 |
||||||
|
9 |
178807 LEVER BRAKE More informationQuantity required : 1 |
||||||
|
10 |
178823 PONT G. More informationQuantity required : 1 |
||||||
|
11 |
063440 SCREW More informationQuantity required : 2 |
||||||
|
12 |
012536-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/0/3/img/116303.jpg)
13 |
CYLINDER OF BRAKE FRONT THREE-WHEELER APE CALESSINO 2007 < 2012/CLASSIC 206 >-587616 More informationQuantity required : 1 |
||||||
|
14 |
063440 SCREW More informationQuantity required : 2 |
||||||
|
15 |
179057 FORK COMPLETE More informationQuantity required : 1 |
||||||
|
15 |
179056 FORK COMPLETE More informationQuantity required : 1 |
||||||
|
16 |
632148 CYLINDER BRAKE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/7/img/117627.jpg)
17 |
MACHOIRES OF BRAKE REAR LEFT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/6/img/117626.jpg)
17 |
MACHOIRES OF BRAKE REAR RIGHT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940006 More informationQuantity required : 1 |
||||||
|
18 |
SPRING DE BRAKE SHOE SET OEM PIAGGIO THREE-WHEELER APE-116088 More informationQuantity required : 1 |
||||||
|
19 |
SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038 More informationQuantity required : 1 |
||||||
|
20 |
SPRING DE BRAKE SHOE SET OEM PIAGGIO THREE-WHEELER APE-116088 More informationQuantity required : 1 |
||||||
|
21 |
178824 PONT D. More informationQuantity required : 1 |
||||||
|
21 |
178823 PONT G. More informationQuantity required : 1 |
||||||
|
22 |
662103 - MACHOIRE More informationQuantity required : 1 |
||||||
|
22 |
B003784 PATIN BRAKE FRONT LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/9/img/111439.jpg)
23 |
SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808 More informationQuantity required : 1 |
||||||
|
24 |
178807 LEVER BRAKE More informationQuantity required : 1 |
||||||
|
25 |
063440 SCREW More informationQuantity required : 2 |
||||||
|
26 |
012536-WASHER More informationQuantity required : 2 |
