Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

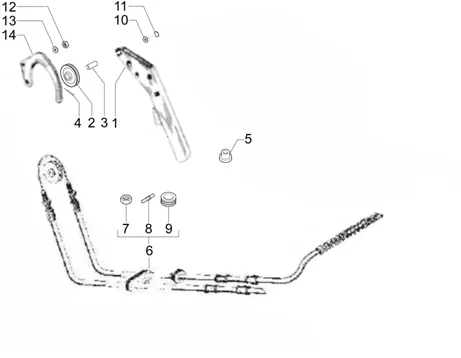

Transmisisons : 05.06 FREIN DE STATIONNEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_05.06_20251008084612.PNG)
1 |
567746 - LEVIER More informationQuantity required : 1 |
||||||
|
2 |
567898 PULLEY More informationQuantity required : 1 |
||||||
|
3 |
567899 PULLEY More informationQuantity required : 1 |
||||||
|
4 |
567920 GOUPILLE More informationQuantity required : 1 |
||||||
|
5 |
604502 CAP More informationQuantity required : 2 |
||||||
|
6 |
660341 TRANSMISSION More informationQuantity required : 1 |
||||||
|
7 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-B011531 More informationQuantity required : 4 |
||||||
|
7 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-B011531 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/5/img/139375.jpg)
8 |
CAPUCHON DE CABLE DE TRANSMISSION OEM PIAGGIO THREE-WHEELER APE-116260 More informationQuantity required : 2 |
||||||
|
9 |
109355-GUIDE CABLE More informationQuantity required : 2 |
||||||
|
10 |
013812 WASHER S01381200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/1/img/63811.jpg)
11 |
CIRCLIPS SPROCKET DE KICK OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX 2011 >-006411 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
12 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
13 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
|
14 |
B042794R SECTEUR More informationQuantity required : 1 |
