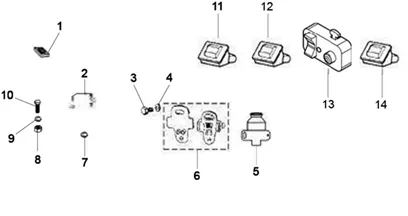

Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 2014-2015 PIAGGIO VU

Installation électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
Inverseurs - commutateurs - boutons - interrupteurs
Search
568103 - SUPPORT

1
P2R reference P2R reference 109806
Maker reference Maker reference 568103

568103 BRACKET

More information

Quantity required : 1

RELAIS OEM PIAGGIO THREE-WHEELER APE CALESSINO, CLASSIC 2006 >-B023727R

2
P2R reference P2R reference 113354
Maker reference Maker reference B023727R

RELAIS OEM PIAGGIO THREE-WHEELER APE CALESSINO, CLASSIC 2006 >-B023727R

More information

Quantity required : 1

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

3
P2R reference P2R reference 65408
Maker reference Maker reference 0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

More information

Quantity required : 2

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

4
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

More information

Quantity required : 2

INTERRUPTEUR/BUTTON STOP OEM PIAGGIO THREE-WHEELER APE 50 2018 >, CALESSINO 2007 >, CLASSIC 2006 >-567498R

5
P2R reference P2R reference 111479
Maker reference Maker reference 567498R

INTERRUPTEUR/BUTTON STOP OEM PIAGGIO THREE-WHEELER APE 50 2018 >, CALESSINO 2007 >, CLASSIC 2006 >-567498R

More information

Quantity required : 1

INTERRUPTEUR/BUTTON STOP OEM PIAGGIO THREE-WHEELER APE 50 2018 >, CALESSINO 2007 >, CLASSIC 2006 >-567498R

6
P2R reference P2R reference 111479
Maker reference Maker reference 567498R

INTERRUPTEUR/BUTTON STOP OEM PIAGGIO THREE-WHEELER APE 50 2018 >, CALESSINO 2007 >, CLASSIC 2006 >-567498R

More information

Quantity required : 1

003055 - RONDELLE

7
P2R reference P2R reference 63776
Maker reference Maker reference 0030555

003055-WASHER

More information

Quantity required : 1

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

8
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 1

9
P2R reference P2R reference
Maker reference Maker reference 0125465

031057 - BOULON S03105700

10
P2R reference P2R reference 65633
Maker reference Maker reference 0310575

SCREW TH (5X14) OEM PIAGGIO COMMON A LA RANGE-031057

More information

Quantity required : 1

632262 - COMMUTATEUR

11
P2R reference P2R reference 116676
Maker reference Maker reference 632262

632262 SWITCH

More information

Quantity required : 1

645242R - INTERRUPTEUR

12
P2R reference P2R reference 113483
Maker reference Maker reference 645242R

INTERRUPTEUR DE HEADLAMP OEM PIAGGIO THREE-WHEELER APE CALESSINO, CLASSIC 2006 > 2017-645242R

More information

Quantity required : 1

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" APE, CALESSINO -B073366-

13
P2R reference P2R reference 116560
Maker reference Maker reference B073366

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" APE, CALESSINO -B073366

More information

Quantity required : 1

652082R - INTERRUPTEUR ESSUIS GLACE

14
P2R reference P2R reference 113484
Maker reference Maker reference 652082R

652082R - INTERRUPTEUR ESSUIS GLACE

More information

Quantity required : 1
