Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

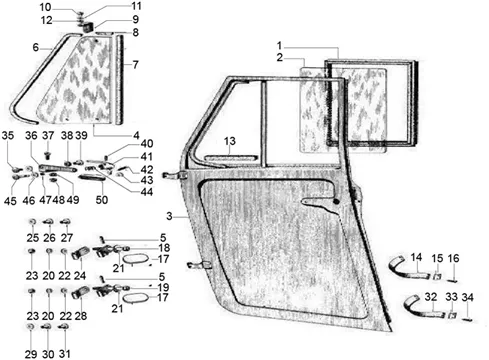

Parties plastiques-carrosseries : 02.07 PORTIERES AVANT - VITRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_02.07_20251008084420.PNG)
1 |
GASKET OF VITRE FIXE FRONT OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 > More informationQuantity required : 1 |
||||||
|
2 |
163661 TRANSPARENT More informationQuantity required : 1 |
||||||
|
3 |
B002847 DOOR RIGHT More informationQuantity required : 1 |
||||||
|
3 |
B002848 DOOR LEFT More informationQuantity required : 1 |
||||||
|
3 |
B002847 DOOR RIGHT More informationQuantity required : 1 |
||||||
|
4 |
163665 TRANSPARENT More informationQuantity required : 1 |
||||||
|
5 |
008847 SPINDLE S00884700 More informationQuantity required : 2 |
||||||
|
6 |
GASKET OF VITRE DEFLECTOR OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-163784 More informationQuantity required : 1 |
||||||
|
7 |
GASKET REAR DE VITRE DEFLECTOR OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-163782 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/0/2/img/110502.jpg)
8 |
GASKET UPPER DE VITRE DEFLECTOR OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-163660 More informationQuantity required : 1 |
||||||
|
9 |
108800 PIVOT More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
11 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
12 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/9/0/img/111490.jpg)
13 |
GASKET LOWER DE VITRE DEFLECTOR OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-163659 More informationQuantity required : 1 |
||||||
|
14 |
B074173 DRIVE BELT OF RETENUE More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
|
16 |
568692 SCREW More informationQuantity required : 4 |
||||||
|
17 |
190255 CAP More informationQuantity required : 1 |
||||||
|
18 |
030074-BOLT S03007400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/2/img/65612.jpg)
19 |
SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
20 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 4 |
||||||
|
21 |
140728 WASHER 8. 5 X 24 X 3 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
22 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
23 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 5 |
||||||
|
24 |
604690 CAP More informationQuantity required : 1 |
||||||
|
25 |
013935 - RONDELLE S01393500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/0/6/img/111906.jpg)
26 |
SCREW (M5X7) GRIP INNER DOOR OEM PIAGGIO THREE-WHEELER-108805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/9/8/img/110398.jpg)
27 |
SCREW (M5X11) DOOR OEM PIAGGIO THREE-WHEELER APE CLASSIC-604812 More informationQuantity required : 1 |
||||||
|
28 |
604689 CAP More informationQuantity required : 1 |
||||||
|
29 |
013935 - RONDELLE S01393500 More informationQuantity required : 1 |
||||||
|
30 |
SCREW (M5X7) GRIP INNER DOOR OEM PIAGGIO THREE-WHEELER-108805 More informationQuantity required : 1 |
||||||
|
31 |
SCREW (M5X11) DOOR OEM PIAGGIO THREE-WHEELER APE CLASSIC-604812 More informationQuantity required : 1 |
||||||
|
32 |
B074173 DRIVE BELT OF RETENUE More informationQuantity required : 1 |
||||||
|
33 |
|
||||||
|
34 |
568692 SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/1/7/img/111917.jpg)
35 |
SCREW GRIP DOOR INNER OEM PIAGGIO THREE-WHEELER APE-108804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/4/img/110384.jpg)
36 |
BRACKET DE DEFLECTOR INNER DOOR OEM PIAGGIO THREE-WHEELER APE CLASSIC-108801 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/4/img/65634.jpg)
37 |
SCREW TH (5X16) OEM PIAGGIO COMMON A LA RANGE-031058 More informationQuantity required : 1 |
||||||
|
38 |
006177-WASHER S00617700 More informationQuantity required : 1 |
||||||
|
39 |
SCREW (M5X7) GRIP INNER DOOR OEM PIAGGIO THREE-WHEELER-108805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/0/img/63860.jpg)
40 |
EPINGLE DE LOCK OEM PIAGGIO COMMON A LA RANGE-008808 More informationQuantity required : 1 |
||||||
|
41 |
B003865 LEVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
42 |
SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727 More informationQuantity required : 1 |
||||||
|
43 |
109329 - RONDELLE More informationQuantity required : 1 |
||||||
|
44 |
062961 SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/9/3/img/111393.jpg)
45 |
PIVOT LATCH DOOR OEM PIAGGIO THREE-WHEELER APE CLASSIC-604558 More informationQuantity required : 1 |
||||||
|
46 |
013935 - RONDELLE S01393500 More informationQuantity required : 1 |
||||||
|
47 |
116971 GARNITURE (ABOLI WITHOUT REMPLACEMENT) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
48 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 2 |
||||||
|
49 |
|
||||||
|
50 |
182654 - EMBOUT More informationQuantity required : 1 |
