Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

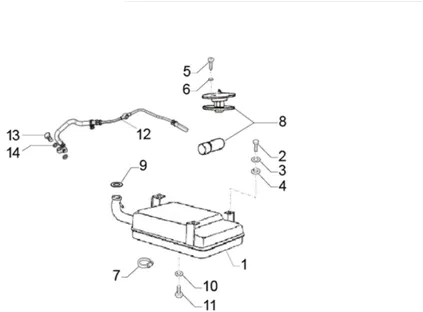

Parties plastiques-carrosseries : 02.38 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_02.38_20251008084510.PNG)
1 |
643776 FUEL TANK * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
2 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
3 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
5 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
6 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 6 |
||||||
|
7 |
632864 CLAMP More informationQuantity required : 4 |
||||||
|
8 |
567878R SONDE FUEL TANK More informationQuantity required : 1 |
||||||
|
9 |
652105 GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/8/2/img/110282.jpg)
10 |
GASKET CUIVRE OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-224644 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/4/6/img/111246.jpg)
11 |
FITTING DE TANK OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-231018 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/6/8/3/img/116683.jpg)
12 |
HOSE/FUEL HOSE OEM PIAGGIO THREE-WHEELER APE CLASSIC 2014 >-E43527167 More informationQuantity required : 1 |
||||||
|
13 |
E1441570056 BOLT M 10 More informationQuantity required : 1 |
||||||
|
14 |
E40000687 GASKET More informationQuantity required : 2 |
