Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

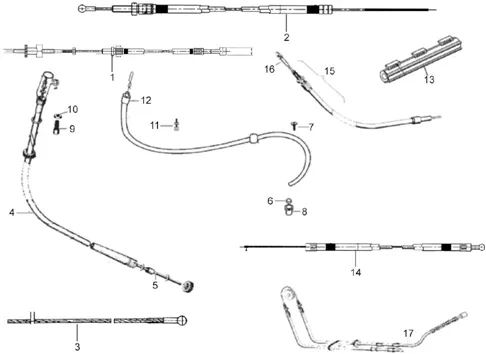

Transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_05.03_20251008084059.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/6/6/0/img/115660.jpg)
1 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017-B023919 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/2/2/img/113422.jpg)
2 |
CABLE/CONTROL/TRANSMISSION DE SPEED OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017 (COULEUR IDENTIFICATION VERT)-B023912 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/8/8/8/img/113888.jpg)
3 |
CABLE/CONTROL/TRANSMISSION DE SPEED OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017 (COULEUR IDENTIFICATION RED)-B023915 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/6/7/3/img/115673.jpg)
4 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017-645124 More informationQuantity required : 1 |
||||||
5 |
587812 CABLE INSTRUMENT CLUSTER KILOMETRIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/4/2/img/109842.jpg)
6 |
PASTILLE DE BUTEE DE CABLE OEM PIAGGIO APE-150418 More informationQuantity required : 2 |
||||||
|
7 |
150417-EMBOUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/3/1/img/110131.jpg)
8 |
BUSH DE TRANSMISSION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017/CLASSIC 2017 > 2023-604560 More informationQuantity required : 2 |
||||||
|
9 |
197071 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
10 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
|
11 |
Vis embrayage |
||||||
|
12 |
B023909 - TRANSMISSION STARTER More informationQuantity required : 1 |
||||||
|
13 |
B024774 CONNECTEUR DE CABLE COMPL More informationQuantity required : 2 |
||||||
|
14 |
B042356 TRANSM. CONTROL THROTTLE More informationQuantity required : 1 |
||||||
|
15 |
587633 CABLE STEP AR More informationQuantity required : 0 |
||||||
|
16 |
|
||||||
|
17 |
B002338 CABLE More informationQuantity required : 1 |
