Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

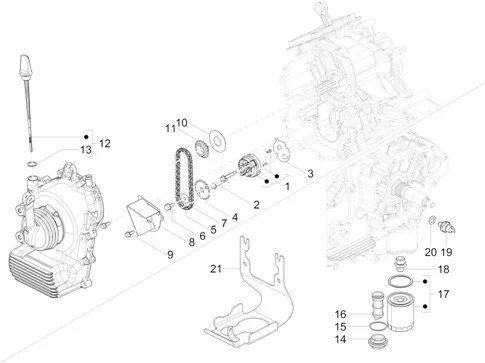

Moteur : 01.08 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_01.08_20251008083744.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/9/img/68849.jpg)
1 |
OIL PUMP OEM PIAGGIO 125-250-300 MP3, BEVERLY, X7, VESPA GTS, 125-250 X8, X-EVO, X9, 125-300 YOURBAN, 125 FLY, LIBERTY, VESPA LX/GILERA NEXUS/APRILIA ATLANTIC, SCARABEO-82948R More informationQuantity required : 1 |
||||||
2 |
829593-BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/9/2/img/109992_20251023145250.jpg)
3 |
GASKET CASING OIL PUMP OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >-B015943 More informationQuantity required : 1 |
||||||
|
4 |
B017042 COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
5 |
WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
6 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
||||||
|
7 |
B015026 CHAIN More informationQuantity required : 1 |
||||||
|
8 |
B018401 PLATE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
9 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 2 |
||||||
|
10 |
B018356 WASHER More informationQuantity required : 1 |
||||||
|
11 |
1A001905R ENGRENEGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/2/4/img/111124.jpg)
12 |
JAUGE NIVEAU D'HUILE OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017-B016472 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
13 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
||||||
|
13 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/8/6/img/111986.jpg)
14 |
CAP OIL FILTER OEM PIAGGIO COMMON A LA RANGE-B015598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
15 |
GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536 More informationQuantity required : 1 |
||||||
|
16 |
83065R OIL FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
17 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356 More informationQuantity required : 1 |
||||||
|
17 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356 More informationQuantity required : 1 |
||||||
|
18 |
B016856 BOLT OIL FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
19 |
SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/1/img/72621.jpg)
20 |
WASHER (10, 5X17X1, 5) OEM PIAGGIO COMMON A LA RANGE-AP9150472 More informationQuantity required : 1 |
||||||
|
21 |
1A001283 PROTECTOR More informationQuantity required : 1 |
