Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

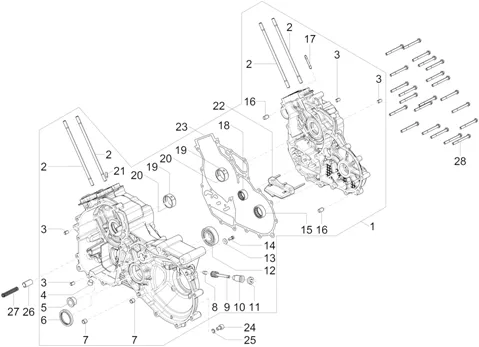

Moteur : 01.02 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_01.02_20251008083716.PNG)
1 |
B016174 CASING ENGINE More informationQuantity required : 1 |
||||||
|
2 |
B014755 STUD More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
3 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
4 |
CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433 More informationQuantity required : 1 |
||||||
|
5 |
120302013 BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/8/5/3/img/113853.jpg)
6 |
OIL SEAL (35X47X6) OEM PIAGGIO COMMON A LA RANGE-1A002685 More informationQuantity required : 1 |
||||||
|
6 |
OIL SEAL (35X47X6) OEM PIAGGIO COMMON A LA RANGE-1A002685 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
7 |
PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957 More informationQuantity required : 2 |
||||||
|
8 |
165121014 PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/2/2/img/115322.jpg)
9 |
SPROCKET DE INSTRUMENT CLUSTER OEM PIAGGIO THREE-WHEELER APE CLASSIC 2014 >/TM 703 FUEL-117404 More informationQuantity required : 1 |
||||||
|
10 |
117401 BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/5/9/img/113259.jpg)
11 |
OIL SEAL (6X19X7) SPROCKET KM OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >, CLASSIC 2014 >, 50 2T 1980 >, TM 703 FUEL-1A023425 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/7/2/5/img/114725.jpg)
12 |
BEARING (25X52X15) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2017 >, CALESSINO 2013 > 2017-880255211R More informationQuantity required : 1 |
||||||
|
13 |
B017178 WASHER More informationQuantity required : 1 |
||||||
|
14 |
B018848 SCREW More informationQuantity required : 1 |
||||||
|
15 |
120212012 CAGE A AIGU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/3/8/img/110038.JPG)
16 |
PION DE CENTRAGE OEM PIAGGIO COMMON A LA RANGE-B015592 More informationQuantity required : 2 |
||||||
|
17 |
B019246 STUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/7/8/img/112678.jpg)
18 |
CAGE A AIGUILLE CASING ENGINE (22X28X12) OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017, CLASSIC 2017 >-884222808 More informationQuantity required : 2 |
||||||
|
19 |
B015872 - SEMICUSCIN.DI More informationQuantity required : 2 |
||||||
|
20 |
B015873 - SEMICUSCIN.DI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
21 |
BUSE CASING MOREUR OEM PIAGGIO COMMON A LA RANGE-484034 More informationQuantity required : 1 |
||||||
|
22 |
B019219 PLATE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/2/1/img/115221.jpg)
23 |
GASKET HALF CASING OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017-B015941 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
24 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
25 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/4/img/68864.jpg)
26 |
VALVE OF PRESSURE OIL OEM PIAGGIO COMMON A LA RANGE-829661 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/6/img/66686.jpg)
27 |
SPRING CASING OIL OEM PIAGGIO COMMON A LA RANGE-485655 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
28 |
SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425 More informationQuantity required : 22 |
