Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

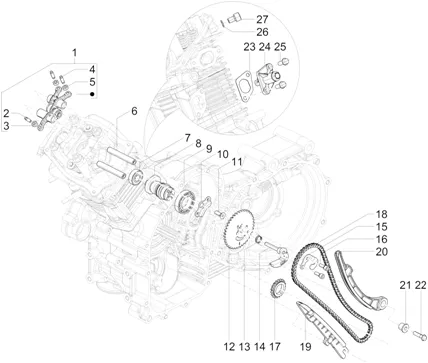

Moteur : 01.06 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/323/Ape_Calessino_200_2013-2015_01.06_20251008083734.PNG)
1 |
83062R BILANCIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/4/5/img/110145.jpg)
2 |
SCREW REGLAGE DE VALVE OEM PIAGGIO 50 SXR APRILIA 2021 >/THREE-WHEELER APE CALESSINO 2013 >-B017323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/3/4/img/109934.jpg)
3 |
NUT DE SERRAGE SCREW CULBUTEUR OEM APRILIA 50 SXR 2021 >-B017431 More informationQuantity required : 1 |
||||||
|
4 |
SCREW REGLAGE DE VALVE OEM PIAGGIO 50 SXR APRILIA 2021 >/THREE-WHEELER APE CALESSINO 2013 >-B017323 More informationQuantity required : 2 |
||||||
|
5 |
NUT DE SERRAGE SCREW CULBUTEUR OEM APRILIA 50 SXR 2021 >-B017431 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/7/img/110337.jpg)
6 |
SHAFT OF CULBUTEUR OEM APRILIA 50 SXR 2021 >-B017113 More informationQuantity required : 2 |
||||||
|
7 |
83040R BEARING More informationQuantity required : 1 |
||||||
|
8 |
B017746 CAMSHAFT More informationQuantity required : 1 |
||||||
|
9 |
83041R BEARING More informationQuantity required : 1 |
||||||
|
10 |
SHEET METAL D'ARRET D'ARBRE A CAMS OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >-B014760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/5/img/109875.jpg)
11 |
SCREW BTR HEAD FRAISE (6X18) OEM PIAGGIO COMMON A LA RANGE-B018946 More informationQuantity required : 1 |
||||||
|
12 |
1A002358 COURONNE TIMING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/1/8/img/110118.jpg)
13 |
SPRING DE DECOMPRESSION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > More informationQuantity required : 1 |
||||||
|
14 |
B014233 - MASSELOTTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/2/0/7/img/159207.jpg)
15 |
SHEET METAL ARRET MASSE DECOMPRESSION OEM APRILIA 50 SXR 2021 >-1A008397 More informationQuantity required : 1 |
||||||
|
15 |
SHEET METAL ARRET MASSE DECOMPRESSION OEM APRILIA 50 SXR 2021 >-1A008397 More informationQuantity required : 1 |
||||||
|
17 |
B015017 SPROCKET More informationQuantity required : 1 |
||||||
|
18 |
1A001114R - CHAINE More informationQuantity required : 1 |
||||||
|
19 |
B014997 ANCRAGE More informationQuantity required : 1 |
||||||
|
20 |
1A004875 TEND. DE CHAIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/3/img/66693.jpg)
21 |
SPACER- -485868 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
22 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
23 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
24 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
|
24 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
25 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
|
25 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
26 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
27 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
