Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 2013-2015 PIAGGIO VU

Moteur : 01.04 GROUPE CYLINDRE-PISTON-AXE

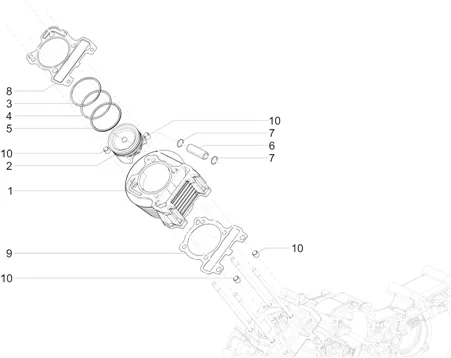

Groupe cylindre-piston-axe
Search
SPB019317 - CYLINDER

1
P2R reference P2R reference 151265
Maker reference Maker reference SPB019317

SPB019317 - CYLINDER

More information

Quantity required : 1

B014442 - PISTONE

2
P2R reference P2R reference 119676
Maker reference Maker reference B014442

B014442 - PISTONE

More information

Quantity required : 1

KIT1U000023 - RING SET

3
P2R reference P2R reference 151114
Maker reference Maker reference KIT1U000023

KIT1U000023 - RING SET

More information

Quantity required : 1

KIT1U000023 - RING SET

4
P2R reference P2R reference 151114
Maker reference Maker reference KIT1U000023

KIT1U000023 - RING SET

More information

Quantity required : 1

486355 - SEGMENT RACLEUR D'HUILE

5
P2R reference P2R reference 66712
Maker reference Maker reference 486355

486355 - SEGMENT RACLEUR D'HUILE

More information

Quantity required : 1

SPINDLE PISTON OEM PIAGGIO 125 MP3 2006 > 2013, X10 2012 > 2015/VESPA GTS 2007 > 2016, VESPA LX 2006 > 2011-482335

6
P2R reference P2R reference 66615
Maker reference Maker reference 482335

SPINDLE PISTON OEM PIAGGIO 125 MP3 2006 > 2013, X10 2012 > 2015/VESPA GTS 2007 > 2016, VESPA LX 2006 > 2011-482335

More information

Quantity required : 1

CIRCLIPS DE PISTON OEM PIAGGIO ENGINE LEADER 125-250-963486

7
P2R reference P2R reference 70922
Maker reference Maker reference 963486

CIRCLIPS DE PISTON OEM PIAGGIO ENGINE LEADER 125-250-963486

More information

Quantity required : 2

CYLINDER HEAD GASKET OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >-B014555

8
P2R reference P2R reference 113294
Maker reference Maker reference B014555

CYLINDER HEAD GASKET OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >-B014555

More information

Quantity required : 1

CYLINDER BASE GASKET DE CYLINDER 0. 4MM OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017-CM166201

9
P2R reference P2R reference 110135
Maker reference Maker reference CM166201

CYLINDER BASE GASKET DE CYLINDER 0. 4MM OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > 2017-CM166201

More information

Quantity required : 0

CM166202 - JOINT CYLINDRE/CARTER

9
P2R reference P2R reference 111212
Maker reference Maker reference CM166202

CM166202 GASKET CYLINDER/CASING

More information

Quantity required : 0

CM166203 - JOINT CYLINDRE/CARTER

9
P2R reference P2R reference 111376
Maker reference Maker reference CM166203

CM166203 GASKET CYLINDER/CASING

More information

Quantity required : 0

PION DE CENTRAGE N- 2 OEM PIAGGIO COMMON A LA RANGE-435571

10
P2R reference P2R reference 66476
Maker reference Maker reference 435571

PION DE CENTRAGE N- 2 OEM PIAGGIO COMMON A LA RANGE-435571

More information

Quantity required : 4
