Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T 2009-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

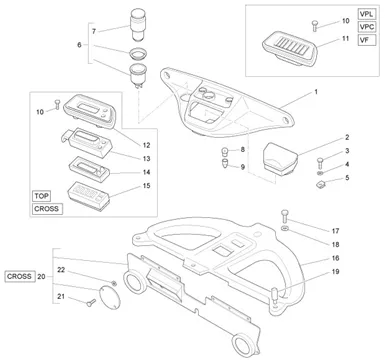

Parties plastiques - carrosseries : 02.42 REVETEMENTS INTERIEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_02.42.PNG)
1 |
567191 PANEL EDGE More informationQuantity required : 1 |
||||||
|
2 |
178745 CENDRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
3 |
SCREW AUTOTARAUDEUSE (3, 5X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-018536 More informationQuantity required : 3 |
||||||
|
4 |
RONDELLE |
||||||
|
5 |
CM017402 PLATE More informationQuantity required : 1 |
||||||
|
6 |
565429 ALLUME CIGARE More informationQuantity required : 1 |
||||||
|
7 |
565429 ALLUME CIGARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
8 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 1 |
||||||
|
9 |
217100-DOOR AMPOULE CPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
10 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 2 |
||||||
|
11 |
567196 COVER DOOR MONN More informationQuantity required : 1 |
||||||
|
12 |
567194 COVER More informationQuantity required : 1 |
||||||
|
13 |
580888 TRASPARENTE OR More informationQuantity required : 1 |
||||||
|
14 |
580887 PULSANTIERA OR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
15 |
HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406 More informationQuantity required : 1 |
||||||
|
16 |
CM031101 - PLANCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
17 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/0/img/63800.jpg)
18 |
WASHER PLATE (5X19X1. 5) OEM PIAGGIO COMMON A LA RANGE-006018 More informationQuantity required : 1 |
||||||
|
19 |
118259 RIVET CAOUTCH More informationQuantity required : 3 |
||||||
|
20 |
568939 PLANCIA PORTAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
21 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
22 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
