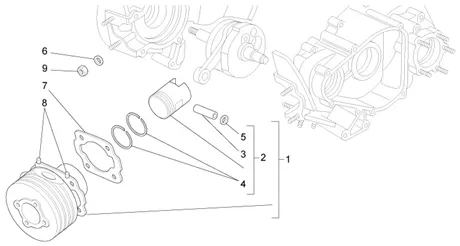

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_01.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/2/9/img/122829.jpg)
1 |
CYLINDER PISTON OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-828679 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/6/img/65986.jpg)
2 |
PISTON COMPLETE (CAT2) OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, VESPA 50 FL2-2432740002 More informationQuantity required : 1 |
||||||
2 |
PISTON COMPLETE (CAT3) OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, VESPA 50 FL2-2432740003 More informationQuantity required : 1 |
||||||
|
2 |
GROUPE PISTON 1ER |
||||||
|
2 |
243276 - PISTON CPLT 2EME More informationQuantity required : 1 |
||||||
|
2 |
PISTON CPLT 3EME |
||||||
|
3 |
879434 SPINDLE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/2/img/65972.jpg)
4 |
PISTON RING OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018, VESPA 50 FL-2235598 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/8/img/63818.jpg)
5 |
CLIPS/CIRCLIPS SHAFT OF PISTON (10. 8) OEM PIAGGIO 50 VESPA FL2/THREE-WHEELER APE DIESEL TM 603, CAR, POKER-0066126 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
6 |
WASHER GROWER (6, 7X12X1. 9) OEM PIAGGIO COMMON A LA RANGE-016407 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/9/img/68629.jpg)
7 |
CYLINDER BASE GASKET DE CYLINDER OEM PIAGGIO 50 THREE-WHEELER APE 2T 1980 >-826911 More informationQuantity required : 1 |
||||||
|
8 |
1B000428-STUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/2/img/65462.jpg)
9 |
NUT (M7X5. 5) DE CYLINDER HEAD OEM PIAGGIO THREE-WHEELER APE 50/VESPA PX 125-020107 More informationQuantity required : 4 |
