Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T 2009-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

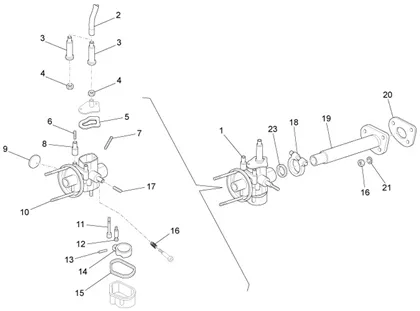

Moteur : 01.39 CARBURATEUR COMPLET RACCORD D ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_01.39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/6/2/5/img/121625.jpg)
1 |
CARBURETTOR OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-B015238 More informationQuantity required : 1 |
||||||
1 |
B017380 CARBURETTOR More informationQuantity required : 1 |
||||||
|
2 |
612791 TRANSMISSION More informationQuantity required : 1 |
||||||
|
3 |
127050 COVER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/8/img/65708.jpg)
4 |
NUT FOR COUDE DE CARBURETTOR (6) OEM PIAGGIO COMMON A LA RANGE-120073 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/3/img/65823.jpg)
5 |
GASKET CARBURETTOR TOP CAP OF CARBURETTOR OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-196694 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/6/img/65686.jpg)
6 |
SPRING VOLET DE STARTER OEM PIAGGIO THREE-WHEELER APE 50 2T 1980 >-098146 More informationQuantity required : 1 |
||||||
|
7 |
244708 PILOT OPEN FACE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/7/img/65687_20251020091637.JPG)
8 |
VALVE OF CARBURETTOR OEM PIAGGIO APE 50-098149 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/9/img/65689.jpg)
9 |
FUEL FILTER OEM APRILIA 50-125 COMMON A LA RANGE MOTO 2005 </PIAGGIO THREE-WHEELER APE 50, TM 703 FUEL-099315 More informationQuantity required : 1 |
||||||
|
10 |
B015237 STUD CYLINDER More informationQuantity required : 1 |
||||||
|
10 |
GOUJON |
||||||
|
11 |
098433-GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/7/img/65997.jpg)
12 |
POINTEAU CARBURETTOR OEM PIAGGIO 50 CIAO/GILERA 50 GSM, EAGLET 1998 > 2005/APRILIA 50 CLASSIC, MX 1998 > 2005-247653 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/1/img/65671.jpg)
13 |
SHAFT OF FLOTEUR OF CARBURETTOR OEM PIAGGIO 125 PX VESPA-085291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/0/6/img/68506.JPG)
14 |
CARBURETTOR FLOAT SHB 18/16 OEM PIAGGIO THREE-WHEELER APE 50-813173 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/7/9/img/110979.jpg)
15 |
FLOAT BOWL GASKET FOR CARBURETTOR OEM PIAGGIO 50 THREE-WHEELER APE1980 >-098148 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/4/img/65684.jpg)
16 |
SPRING OF CARBURETTOR OEM PIAGGIO 50 PK, 125 ET3 VESPA VINTAGE-098130 More informationQuantity required : 1 |
||||||
|
17 |
098135-SPRING More informationQuantity required : 1 |
||||||
|
18 |
140275 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/2/3/5/img/118235.jpg)
19 |
FITTING/MANIFOLD INTAKE OEM PIAGGIO THREE-WHEELER APE 50 1980 > 2018-286889 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/0/8/img/111608.jpg)
20 |
873214 GASKET More informationQuantity required : 1 |
||||||
|
21 |
007631 - RONDELLE S00763100 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
22 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/2/3/img/114023.jpg)
23 |
POCHETTE JOINTS CARBURETTOR OEM PIAGGIO THREE-WHEELER APE 50 1998-2018-498347 More informationQuantity required : 1 |
||||||
|
24 |
B018027 VALVE DE THROTTLE More informationQuantity required : 1 |
||||||
|
24 |
SOUPAPE DE GAZ |
