Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T 2009-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

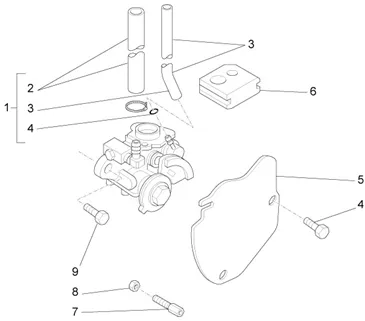

Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_01.18.PNG)
1 |
82606R OIL PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/4/img/73044.jpg)
2 |
HOSE/HOSE ENTRE OIL PUMP ET CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM101605 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/3/img/73043.jpg)
3 |
HOSE/TUBE D'HUILE ENTRE TANK ET PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM101509 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/0/img/66330.jpg)
4 |
GASKET OF OIL PUMP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-311163 More informationQuantity required : 1 |
||||||
|
5 |
482746 PLATE More informationQuantity required : 1 |
||||||
|
6 |
482747 GUIDE CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/5/img/65745.jpg)
7 |
SCREW REGLAGE CABLE OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-146197 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
8 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/4/img/65634.jpg)
9 |
SCREW TH (5X16) OEM PIAGGIO COMMON A LA RANGE-031058 More informationQuantity required : 2 |
