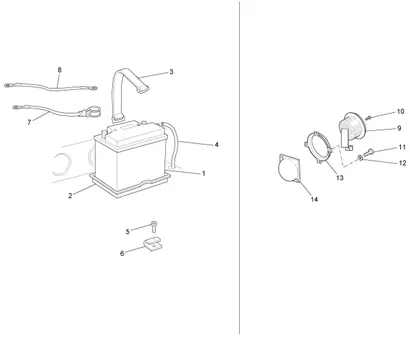

Installation électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_06.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
1 |
BATTERY 12V 9AH YB9-B OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY-584810 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/4/6/4/img/120464.jpg)
1 |
BATTERY 12V 40 AH "PIAGGIO GENUINE PART" 50 APE -600697M More informationQuantity required : 1 |
||||||
2 |
567426 BACINELLA PORT * More informationQuantity required : 1 |
||||||
|
3 |
214801 SANGLE More informationQuantity required : 1 |
||||||
|
4 |
645581 HOSE CARBU More informationQuantity required : 1 |
||||||
|
5 |
297791 RIVET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/1/5/img/112515.jpg)
6 |
PLATE MOUNTING SANGLE OEM PIAGGIO THREE-WHEELER APE 50 1998 >, CALESSINO 2013 > 2017/PORTER NP6-567424 More informationQuantity required : 1 |
||||||
|
7 |
CM061802 CABLE More informationQuantity required : 1 |
||||||
|
8 |
CM061801 CABLE BATTERY More informationQuantity required : 1 |
||||||
|
9 |
58144R-AVERTISSEUR 12V-CC * More informationQuantity required : 1 |
||||||
|
10 |
009000-SCREW S00900000 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/8/img/65388.jpg)
11 |
SCREW PARKER (3, 5X19, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015728 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
12 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/5/9/img/112759.jpg)
13 |
FLANGE MOUNTING AVERTISSEUR OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 > 2018-240106 More informationQuantity required : 1 |
||||||
|
14 |
B025161 CAP More informationQuantity required : 1 |
