Vehicle Exploded View - VESPA VESPA LX 150 4T 3V IE 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

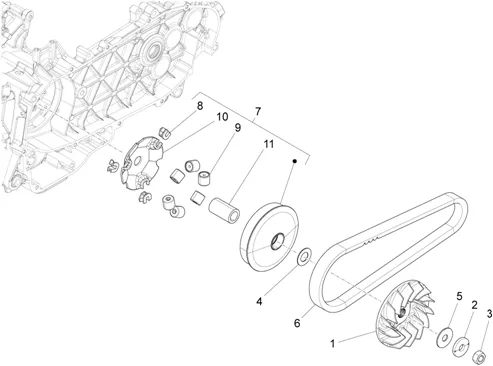

Moteur : 01.13 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/542/Vespa_LX_150_4T_3V_IE_2012-2013_01.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/8/img/70638.jpg)
1 |
FLASQUE/JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC INJECTION-876921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/3/img/70743.jpg)
2 |
WASHER ELASTIC DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-880950 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/9/img/66709.jpg)
3 |
NUT (M12X1. 25) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-486324 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/4/img/68964.jpg)
4 |
WASHER PLATE (17X32X1. 5) OEM PIAGGIO COMMON A TOUTE LA RANGE-831363 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/3/img/69153.jpg)
5 |
WASHER PLATE (12, 1X36X2) OEM PIAGGIO COMMON A LA RANGE-840533 More informationQuantity required : 1 |
||||||
6 |
B016183 - COURROIE More informationQuantity required : 1 |
||||||
|
7 |
CM167602-ROLLER DE LOGEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/8/7/1/img/203871.jpg)
8 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664 More informationQuantity required : 3 |
||||||
|
8 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/8/5/img/94785.jpg)
9 |
GALET/ROLLER 19X17 13G OEM PIAGGIO 125 MEDLEY 2016 >, 125 VESPA GTS 2017 > (SOLD INDIVIDUALLY)-B017947 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/3/img/69223.jpg)
10 |
FLASQUE A ROULEAUX DE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842204 More informationQuantity required : 1 |
||||||
|
11 |
483889-SPACER More informationQuantity required : 1 |
