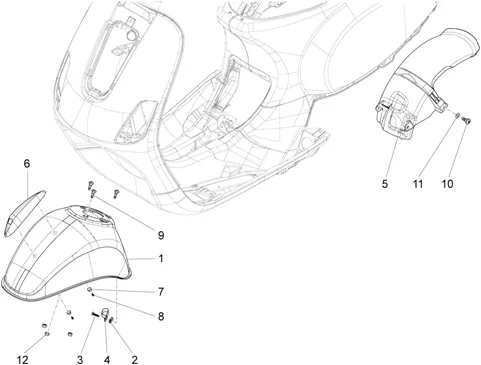

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/542/Vespa_LX_150_4T_3V_IE_2012-2013_02.33.PNG)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA LX UNPAINTED READY TO PAINT-666528 More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA LX WHITE 724-66652860BR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/0/4/6/img/90046.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA LX 2006 > BLUE 222/A-66652800DE More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 VESPA LX GREY 742/B -66652800EZ- More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 VESPA LX GREY 769/B -66652800H8- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/0/6/1/img/90061.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 VESPA LX BLACK 85/B -66652800NL- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/0/6/4/img/90064.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA LX 2006 > RED 894-66652800R7 More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 VESPA LX GREEN 328/A -66652800VM- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/0/6/7/img/90067.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA LX 2006 > BLACK 98/A-66652800XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/2/img/65402.jpg)
3 |
SCREW AUTOFOREUSE (4, 2X9, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/7/8/img/79878.jpg)
4 |
CLAMP GUIDE CABLE OEM PIAGGIO 50-125 VESPA S, LX, LXV, LT, GTS-562919 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/7/2/5/img/199725.jpg)
5 |
REAR MUDGUARD OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 50 ZIP 2006 > 2016, NRG, LIBERTY/GILERA 50 STALKER-5A001285 More informationQuantity required : 1 |
||||||
|
5 |
REAR MUDGUARD OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 50 ZIP 2006 > 2016, NRG, LIBERTY/GILERA 50 STALKER-5A001285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/5/1/img/87151.jpg)
6 |
CRETE DE GUARD-MUD OEM PIAGGIO 50-125 VESPA LX-650748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
7 |
CAPSULE OF FITTING KIT FAIRING OEM PIAGGIO COMMON A LA RANGE-192598 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
8 |
SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
9 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 3 |
||||||
|
10 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
11 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
12 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 3 |
