Vehicle Exploded View - VESPA VESPA LX 150 4T 3V IE 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

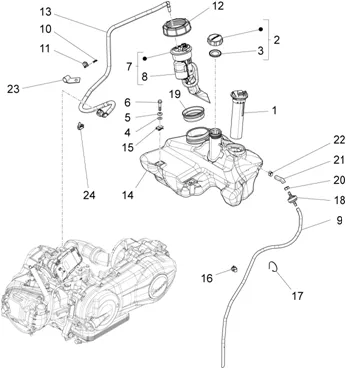

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/542/Vespa_LX_150_4T_3V_IE_2012-2013_02.47.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/3/4/5/img/95345.jpg)
1 |
JAUGE A FUEL OEM PIAGGIO 50-125 LIBERTY 2015 >, VESPA LX 2013 >, VESPA-S 2013 >-CM025713 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/8/img/68308.jpg)
2 |
CAP FUEL TANK OEM PIAGGIO COMMON A LA RANGE-656022 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/7/img/68307.jpg)
3 |
GASKET CAP DE TANK OEM PIAGGIO COMMON A LA RANGE-656021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
4 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
6 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/4/7/0/img/205470.jpg)
7 |
FUEL PUMP ELECTRIC OEM PIAGGIO 125 VESPA LX 2011 >, VESPA LXV 2009 > 2013, VESPA-S 2011 >-1D004191R More informationQuantity required : 1 |
||||||
|
7 |
FUEL PUMP ELECTRIC OEM PIAGGIO 125 VESPA LX 2011 >, VESPA LXV 2009 > 2013, VESPA-S 2011 >-1D004191R More informationQuantity required : 1 |
||||||
8 |
639357-FILTER PUMP ELECTRIC More informationQuantity required : 1 |
||||||
|
9 |
CM011904 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/8/0/9/img/90809.jpg)
10 |
CLIPS SPRING DE STEERING OEM PIAGGIO 50-125 COMMON A LA RANGE-672491 More informationQuantity required : 1 |
||||||
|
11 |
CM006913-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
12 |
NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/7/8/1/img/91781.jpg)
13 |
FUEL HOSE OEM PIAGGIO 125 VESPA S 2012-674906 More informationQuantity required : 1 |
||||||
|
14 |
655379 - RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
16 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
17 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
|
18 |
576748-VOLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
19 |
GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
20 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 1 |
||||||
|
21 |
CM177910-HOSE More informationQuantity required : 1 |
||||||
|
22 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 1 |
||||||
|
23 |
675126-BANDE More informationQuantity required : 1 |
||||||
|
24 |
217280 - COLLIER More informationQuantity required : 1 |
