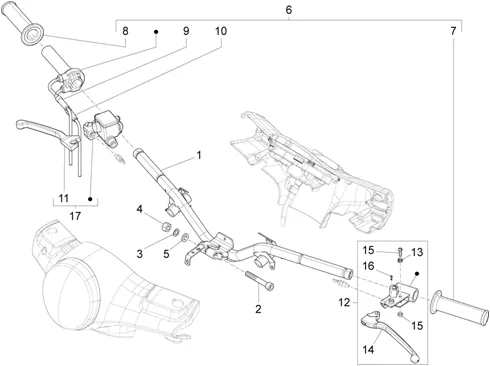

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/542/Vespa_LX_150_4T_3V_IE_2012-2013_03.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/0/7/0/img/151070.jpg)
1 |
HANDLEBAR OEM PIAGGIO 50-125 VESPA LX-1B004584 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
2 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
3 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
4 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
5 |
WASHER PLATE (10X18X2. 5) OEM PIAGGIO COMMON A LA RANGE-267917 More informationQuantity required : 1 |
||||||
6 |
CM079739-THROTTLE GRIP CPL More informationQuantity required : 1 |
||||||
|
6 |
CM079741-THROTTLE GRIP CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/7/9/img/95779.jpg)
7 |
GRIP/REVETTEMENT LEFT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-CM083803 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/8/0/img/95780.jpg)
8 |
REVETEMENT DE GRIP RIGHT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-CM083804 More informationQuantity required : 1 |
||||||
|
9 |
1C000282-TRANSMISSION More informationQuantity required : 1 |
||||||
|
9 |
668482-OUVERTURE DE CONTR? LE DE THROTTLE More informationQuantity required : 1 |
||||||
|
10 |
1C000283-TRANSMISSION DE THROTTLE More informationQuantity required : 1 |
||||||
|
10 |
668483-LATCH CONTROL DE THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/1/img/66911.jpg)
11 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, VESPA LX, MEDLEY, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER LEFT/RIGHT-497042 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/5/0/3/img/95503.jpg)
12 |
GRIP BRAKE REAR OEM PIAGGIO 50-125 LIBERTY 2009 > 2013, 50-125 VESPA LX 2009 > 2013, 50-125 PRIMAVERA 2013 >, SPRINT 2014 > (LEFT HAND THREAD)-CM063806 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
13 |
SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/5/img/67075.jpg)
14 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, PRIMAVERA, 50 NRG POWER LEFT (HENG-TONG)-564683 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
15 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
16 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/9/1/img/72991.jpg)
17 |
BRAKE MASTER CYLINDER FRONT OEM PIAGGIO 50-125 VESPA LX 2006, VESPA-S 2007 >/APRILIA 50 SCARABEO 2010 >-CM074904 More informationQuantity required : 1 |
