Vehicle Exploded View - VESPA VESPA GTS 310 E5+ Super Tech 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

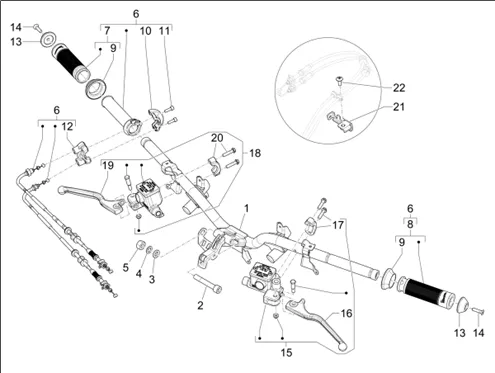

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1363/Vespa_GTS_310_E5_Super_Tech_2026_EMEA_03.06.png)
1 |
1B009962R - HANDLEBAR WITH I.P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/5/9/img/90459.jpg)
2 |
668874 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
3 |
267917 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
4 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
015330 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
CM3275010000C - RIGHT HANDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/5/4/img/201054.jpg)
7 |
CM3275010000C - RIGHT HANDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/5/6/img/201056.jpg)
8 |
CM3275020000C - COMPLETE HANDLE More informationQuantity required : 1 |
||||||
|
9 |
1C007038000XNM - HANDLE RING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/1/4/img/109314.jpg)
10 |
666758 - LOWER HALF CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/1/img/178661.JPG)
11 |
1C004839 - SOCKET HEAD SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/6/1/img/109261.jpg)
12 |
598369 - LOWER HALF CLAMP More informationQuantity required : 1 |
||||||
|
13 |
830129 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/7/img/68897.jpg)
14 |
830129 - VIS More informationQuantity required : 2 |
||||||
|
15 |
CM325802 - LEFT MASTER CYLINDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/6/1/img/201061.jpg)
16 |
1C007043 - RIGHT BRAKE LEVER More informationQuantity required : 1 |
||||||
|
17 |
1C007040 - CLAMP WITH SCREWS More informationQuantity required : 1 |
||||||
|
18 |
CM325801 - RIGHT MASTER CYLINDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/5/8/img/201058.jpg)
19 |
1C007042 - RIGHT BRAKE LEVER More informationQuantity required : 1 |
||||||
|
20 |
1C007040 - CLAMP WITH SCREWS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/7/8/img/86978.jpg)
21 |
CABLES RETAINING BRACKET "PIAGGIO GENUINE PART"125-250-300 VESPA GTS -649635 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
22 |
CM179301 - VIS More informationQuantity required : 1 |
