Vehicle Exploded View - VESPA VESPA GTS 310 E5+ Super Tech 2026 (EMEA) VESPA

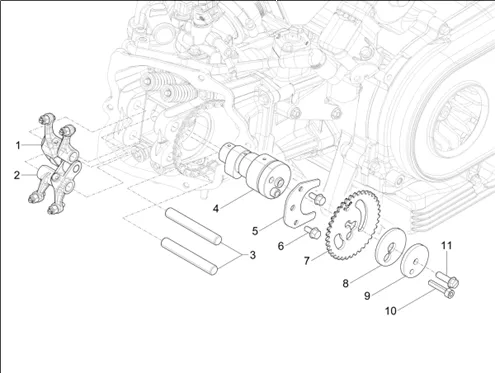

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
Groupe support balanciers
Search
CULBUTEUR INTAKE (ATTENTION ACCOUPLE WITH 1A021577) OEM PIAGGIO 300 MP3, BEVERLY, GTS 2019 >-1A021575

1
P2R reference P2R reference 201763
Maker reference Maker reference 1A021575

CULBUTEUR INTAKE (ATTENTION ACCOUPLE WITH 1A021577) OEM PIAGGIO 300 MP3, BEVERLY, GTS 2019 >-1A021575

More information

Quantity required : 1

CULBUTEUR EXHAUST (ATTENTION ACCOUPLE WITH 1A021575) OEM PIAGGIO 300 MP3, BEVERLY, GTS 2019 >-1A021577

2
P2R reference P2R reference 201764
Maker reference Maker reference 1A021577

CULBUTEUR EXHAUST (ATTENTION ACCOUPLE WITH 1A021575) OEM PIAGGIO 300 MP3, BEVERLY, GTS 2019 >-1A021577

More information

Quantity required : 1

1A013022 - CULBUTEUR AXE

3
P2R reference P2R reference 156017
Maker reference Maker reference 1A013022

SHAFT OF CULBUTEUR OEM PIAGGIO 300 BEVERLY, MP3, GTS 2019 >-1A013022

More information

Quantity required : 1

1A027889 - ARBRE A CAMES AVEC PIECES INTERNES

4
P2R reference P2R reference 218837
Maker reference Maker reference 1A027889

1A027889-CAMSHAFT WITH PIECES INTERNES

More information

Quantity required : 1

SHEET METAL CAMSHAFT OEM PIAGGIO COMMON A LA RANGE-877309

5
P2R reference P2R reference 70659
Maker reference Maker reference 877309

SHEET METAL CAMSHAFT OEM PIAGGIO COMMON A LA RANGE-877309

More information

Quantity required : 1

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123

6
P2R reference P2R reference 66655
Maker reference Maker reference 484123

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123

More information

Quantity required : 2

COURONNE TIMING OEM PIAGGIO 300-400 BEVERLY, MP3, GTS 2019 >-B014970

7
P2R reference P2R reference 94605
Maker reference Maker reference B014970

COURONNE TIMING OEM PIAGGIO 300-400 BEVERLY, MP3, GTS 2019 >-B014970

More information

Quantity required : 1

WASHER SPECIALE GROUP BALANCIER OEM PIAGGIO 125 SCOOTER 2012 <-830447

8
P2R reference P2R reference 68919
Maker reference Maker reference 830447

WASHER SPECIALE GROUP BALANCIER OEM PIAGGIO 125 SCOOTER 2012 <-830447

More information

Quantity required : 1

WASHER PLATE DE BALANCIER OEM PIAGGIO 125 2013 <-830446

9
P2R reference P2R reference 68918
Maker reference Maker reference 830446

WASHER PLATE DE BALANCIER OEM PIAGGIO 125 2013 <-830446

More information

Quantity required : 1

SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115

10
P2R reference P2R reference 127168
Maker reference Maker reference 1A003115

SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

11
P2R reference P2R reference 65447
Maker reference Maker reference 0186395

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

More information

Quantity required : 1
