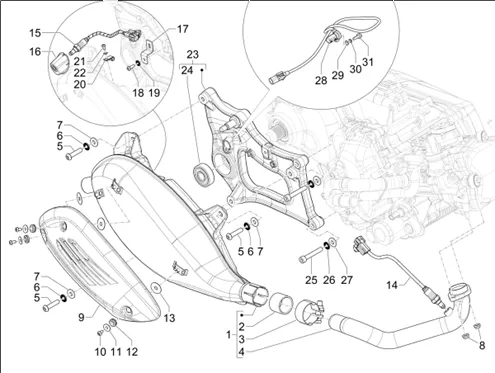

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1363/Vespa_GTS_310_E5_Super_Tech_2026_EMEA_01.42.png)
1 |
1A0249755-COMPLETE MUFFLER WITH MANIFOLD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/6/img/68596.jpg)
2 |
GASKET GRAPHITE SILENCER OEM PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVO/GILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX-8263885 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/4/9/img/174549.jpg)
3 |
CLAMP SILENCER EXHAUST OEM PIAGGIO 300 MP3, GTS 2019 >-1A017625 More informationQuantity required : 1 |
|||||||||
|
4 |
1A026531-MANIFOLD D'Ã - CHAPPEMENT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/2/img/67372.jpg)
5 |
SCREW TORX (8X30) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-599208 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
6 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/7/0/img/69570.jpg)
7 |
WASHER PLATE (8X19, 3X2, 5) OEM PIAGGIO COMMON A LA RANGE-848452 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
8 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 2 |
|||||||||
|
9 |
1A024593-THERMAL PROTECTOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
10 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
11 |
WASHER PLATE (5X16) SHEET METAL EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE-827526 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
12 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-841782 More informationQuantity required : 3 |
|||||||||
|
13 |
1A027260-PLAIN WASHER More informationQuantity required : 3 |
|||||||||
|
14 |
1A024117-SONDE LAMDA More informationQuantity required : 1 |
|||||||||
|
15 |
CM342001-LAMBDA SENSOR WITH HARNESS BAND More informationQuantity required : 1 |
|||||||||
|
16 |
1A027415 - PROTECTION More informationQuantity required : 1 |
|||||||||
|
17 |
1A025268-FLANGE More informationQuantity required : 1 |
|||||||||
|
18 |
658721 SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
19 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 1 |
|||||||||
|
20 |
643451-CLAMP. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/5/2/img/69252.jpg)
21 |
SCREW M5X10 OEM PIAGGIO COMMON A LA RANGE-1C001493 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
22 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 1 |
|||||||||
|
23 |
1A025114-ARM DE SUSPENSION RIGHT COMPLETE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
24 |
BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
25 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-844483 More informationQuantity required : 2 |
|||||||||
|
26 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
|||||||||
|
27 |
WASHER PLATE (8X19, 3X2, 5) OEM PIAGGIO COMMON A LA RANGE-848452 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/7/9/img/198579.jpg)
28 |
SENSOR OF BRAKE REAR ABS OEM PIAGGIO 125-300 GTS 2016 >/400-530 MP3 2022 > PORTER E4 2010 >-1D003828 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
29 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 1 |
|||||||||
|
30 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/5/3/8/img/90538.jpg)
31 |
WASHER PLATE (6X8. 5X. 05) ORRIGINE PIAGGIO COMMON A LA RANGE-669282 More informationQuantity required : 1 |
|||||||||
