Vehicle Exploded View - VESPA VESPA GTS 300 HPE 4T-4V ie ABS E4 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

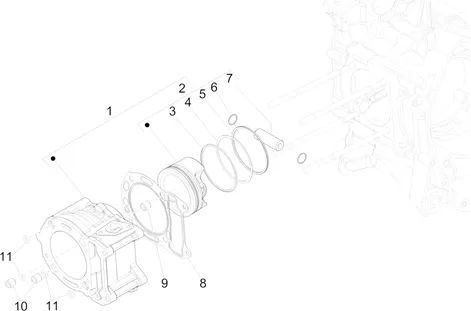

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/831/Vespa_GTS_300_HPE_4T-4V_ie_ABS_E4_2019_(EMEA)_01.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/0/0/img/156000.jpg)
1 |
CYLINDER PISTON OEM PIAGGIO 300 MP3 HPE 2019 >, VESPA GTS 2019 >-1A0214314 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/0/1/img/156001.JPG)
2 |
PISTON OEM PIAGGIO 300 MP3 HPE 2019 >, VESPA GTS 2019 > (CAT 2 " N ")-1A0133640N More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/0/2/img/156002.jpg)
2 |
PISTON OEM PIAGGIO 300 MP3 HPE 2019 >, VESPA GTS 2019 > (CAT 3 " O ")-1A0133640O More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/0/3/img/156003.jpg)
2 |
PISTON OEM PIAGGIO 300 MP3 HPE 2019 >, VESPA GTS 2019 > (CAT 1 " M ")-1A0133640M More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/0/4/img/156004.jpg)
2 |
PISTON OEM PIAGGIO 300 MP3 HPE 2019 >, VESPA GTS 2019 > (CAT 4 " P ")-1A0133640P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/0/5/img/156005.jpg)
3 |
PISTON RING DE LAMP OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 >-1A011379 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/0/6/img/156006.jpg)
4 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS 2019 >-1A013666 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/0/7/img/156007.jpg)
5 |
PISTON RING RACLEUR D'HUILE OEM PIAGGIO 300 BEVERLY, MP3, GTS 2019 >-1A013667 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/1/img/70571.jpg)
6 |
CLIPS/CIRCLIPS PISTON OEM PIAGGIO 300 COMMON A LA RANGE-875096 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/6/9/img/70569.jpg)
7 |
SHAFT OF PISTON OEM PIAGGIO 300 MP3, BEVERLY, GTS-875005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 6MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875113 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
9 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
10 |
PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/4/img/72764.jpg)
11 |
O RING OF CYLINDER OEM PIAGGIO COMMON A TOUTE LA RANGE 125-250 MAXI SCOOTER-B017342 More informationQuantity required : 4 |
