Vehicle Exploded View - VESPA VESPA GTS 300 HPE 4T-4V ie ABS E4 2019 (EMEA) VESPA

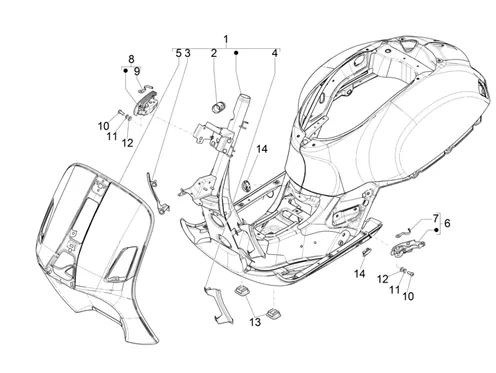

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
Châssis/coque
Search
1B0057575 - COQUE

1
P2R reference P2R reference 156053
Maker reference Maker reference 1B0057575

1B0057575-COQUE

More information

Quantity required : 1

1B005757500VK - COQUE

1
P2R reference P2R reference 156054
Maker reference Maker reference 1B005757500VK

1B005757500VK-COQUE

More information

Quantity required : 1

1B005757500DK - COQUE

1
P2R reference P2R reference 156055
Maker reference Maker reference 1B005757500DK

1B005757500DK-COQUE

More information

Quantity required : 1

1B005757500HA - COQUE

1
P2R reference P2R reference 156056
Maker reference Maker reference 1B005757500HA
Replaced by référence Replaced by référence 156053

1B005757500HA - COQUE

More information

Quantity required : 1

BRACKET LOCK OEM PIAGGIO 50-125-300 PRIMAVERA, SPRINT, GTS 2015 > 2021-1B003712

2
P2R reference P2R reference 151347
Maker reference Maker reference 1B003712

BRACKET LOCK OEM PIAGGIO 50-125-300 PRIMAVERA, SPRINT, GTS 2015 > 2021-1B003712

More information

Quantity required : 1

577398 - SUPPORT

3
P2R reference P2R reference 81220
Maker reference Maker reference 577398

577398-BRACKET

More information

Quantity required : 1

577397 - SUPPORT

4
P2R reference P2R reference 81219
Maker reference Maker reference 577397

577397-BRACKET

More information

Quantity required : 1

1B0033315 - TABLIER (CHASSIS)

5
P2R reference P2R reference 156057
Maker reference Maker reference 1B0033315

1B0033315-LEG SHIELD (FRAME)

More information

Quantity required : 1

PASSENGER FOOTREST LEFT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57326R

6
P2R reference P2R reference 80207
Maker reference Maker reference 57326R

PASSENGER FOOTREST LEFT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57326R

More information

Quantity required : 1

SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395

7
P2R reference P2R reference 83612
Maker reference Maker reference 620395

SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395

More information

Quantity required : 1

PASSENGER FOOTREST RIGHT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57327R

8
P2R reference P2R reference 80208
Maker reference Maker reference 57327R

PASSENGER FOOTREST RIGHT OEM PIAGGIO 125-300 GTS CHROME 2003 >-57327R

More information

Quantity required : 1

SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395

9
P2R reference P2R reference 83612
Maker reference Maker reference 620395

SPRING PASSENGER FOOTREST OEM PIAGGIO 125-300 GTS-620395

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-975855

10
P2R reference P2R reference 71063
Maker reference Maker reference 975855

SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-975855

More information

Quantity required : 4

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

11
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

More information

Quantity required : 4

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

12
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

More information

Quantity required : 2

CAP DE FRAME OEM PIAGGIO COMMON A LA RANGE-299557

13
P2R reference P2R reference 78065
Maker reference Maker reference 299557

CAP DE FRAME OEM PIAGGIO COMMON A LA RANGE-299557

More information

Quantity required : 2

CAP DE DEFLECTOR/SPOILER OEM PIAGGIO 125-300 GTS VESPA-577405000C

14
P2R reference P2R reference 81223
Maker reference Maker reference 577405000C

CAP DE DEFLECTOR/SPOILER OEM PIAGGIO 125-300 GTS VESPA-577405000C

More information

Quantity required : 2
