Vehicle Exploded View - VESPA VESPA GTS 300 HPE 4T-4V ie ABS E4 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

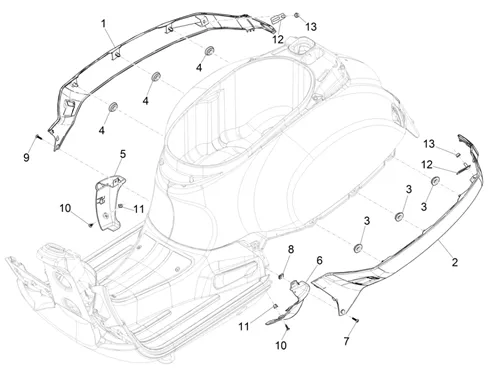

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/831/Vespa_GTS_300_HPE_4T-4V_ie_ABS_E4_2019_(EMEA)_02.32.PNG)
1 |
1B005787000DK-COVER D. More informationQuantity required : 1 |
||||||
|
1 |
1B005787000VK-COVER D. More informationQuantity required : 1 |
||||||
|
1 |
1B005787000HA-COVER D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/8/2/img/156082.jpg)
1 |
PROTECTOR SIDE REAR RIGHT OEM PIAGGIO 125-250-300 VESPA GTS 2018 > 2022 UNPAINTED-1B005787 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/8/3/img/156083.jpg)
2 |
PROTECTOR SIDE REAR LEFT OEM PIAGGIO 125-250-300 VESPA GTS 2018 > 2022 UNPAINTED-1B005786 More informationQuantity required : 1 |
||||||
|
2 |
1B005786000HA-COVER G. More informationQuantity required : 1 |
||||||
|
2 |
1B005786000VK - COUVERCLE G. More informationQuantity required : 1 |
||||||
|
2 |
1B005786000DK-COVER G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
3 |
BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888 More informationQuantity required : 3 |
||||||
|
4 |
BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888 More informationQuantity required : 3 |
||||||
|
5 |
1B005804000DK-TERMINAL SPOILER D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/6/1/img/140061.jpg)
5 |
COVER/EXTREMITE DE SPOILER RIGHT OEM PIAGGIO 125-250-300 VESPA GTS 2022 < UNPAINTED-1B003904 More informationQuantity required : 1 |
||||||
|
5 |
1B005804000HA-TERMINAL SPOILER D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/8/9/img/156089.jpg)
5 |
COVER/EXTREMITE DE SPOILER RIGHT OEM PIAGGIO 125-250-300 VESPA GTS 2022 < VERT 350/A-1B005804000VK More informationQuantity required : 1 |
||||||
|
6 |
1B005803000DK-TERMINAL SPOILER G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/9/1/img/156091.jpg)
6 |
COVER/EXTREMITE DE SPOILER LEFT OEM PIAGGIO 125-250-300 VESPA GTS 2018 > 2022 UNPAINTED-1B005803 More informationQuantity required : 1 |
||||||
|
6 |
1B005803000VK-TERMINAL SPOILER G. More informationQuantity required : 1 |
||||||
|
6 |
1B005803000HA-TERMINAL SPOILER G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/3/img/96283.jpg)
7 |
SCREW TORX (4. 2X21) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
8 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/8/img/96288.jpg)
9 |
SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
10 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
11 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 2 |
||||||
|
12 |
623575-PLATE WITH SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
13 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
