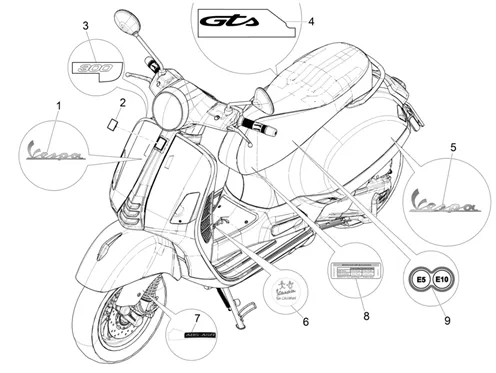

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES - DECORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/831/Vespa_GTS_300_HPE_4T-4V_ie_ABS_E4_2019_(EMEA)_02.38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/0/img/89130.jpg)
1 |
STICKER/STICKER/GRAPHIC " VESPA " OEM PIAGGIO 50-125 VESPA LX 2006 >, PRIMAVERA 2013 >, VESPA-S 2007 >, SPRINT 2014 >, 125 VESPA GTS 2007 >, PX 2014 >-656219 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/9/img/67129.jpg)
2 |
STICKER/STICKER/GRAPHIC OEM PIAGGIO 125 VESPA PX 1980 > 1998/300 GTV 2017 >-576464 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/1/0/1/img/156101.jpg)
3 |
STICKER/STICKER/GRAPHIC " 300 " OEM PIAGGIO VESPA 300 GTS 2018 > 2022-2H003205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/1/0/2/img/156102.jpg)
4 |
STICKER/STICKER/GRAPHIC " GTS " OEM PIAGGIO VESPA 125-300 GTS 2019 >-2H003198 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/1/img/89131.jpg)
5 |
STICKER/STICKER/GRAPHIC " VESPA " OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125 VESPA-656220 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/1/4/img/75814.jpg)
6 |
STICKER/STICKER/GRAPHIC (VESPA FOR CHILDREN) OEM PIAGGIO COMMON A LA RANGE VESPA-1B001078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/6/8/img/75868.jpg)
7 |
STICKER/STICKER/GRAPHIC " ABS-ASR " OEM PIAGGIO 125-300 VESPA GTS 2008 > 2018-1B001417 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/3/9/6/img/142396.jpg)
8 |
STICKER/STICKER/GRAPHIC PRESSION TYRE OEM PIAGGIO 125-300 GTS 2016 >-1G000161 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/1/0/3/img/156103.jpg)
9 |
STICKER/STICKER/GRAPHIC (E5-E10) OEM PIAGGIO COMMON A LA RANGE-2B0059385 More informationQuantity required : 1 |
