Vehicle Exploded View - DERBI VARIANT REVOLUTION 50 VARIANT REVOLUTION 1998-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

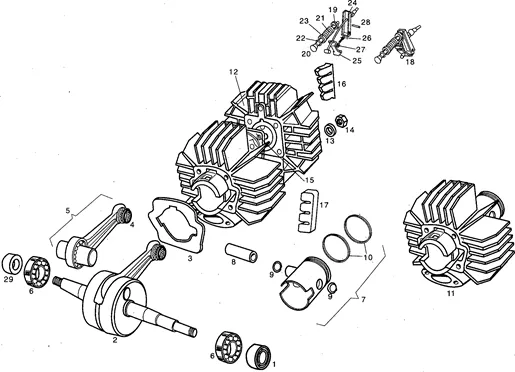

Moteur : 13 CYLINDRE - CUL - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1063/VARIANT_REVOLUTION_1998-2001_13.png)
2 |
00F02507141 - CTO.CIGÐ.-BIELA.V.START (CPR) More informationQuantity required : 1 |
||||||
|
3 |
00F02530041 - JOINT DE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/3/img/69523.jpg)
4 |
CAGE A AIGUILLES DE PISTON 50 A BOX OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >, RS4 2011 >-847529 More informationQuantity required : 1 |
||||||
|
5 |
00F05000011 - R-ENSAMBLE BIELLE More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
00F02501091 - PISTON More informationQuantity required : 1 |
||||||
|
8 |
00003125120 - AXE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/8/img/69478.jpg)
9 |
847178-CIRCLIPS More informationQuantity required : 1 |
||||||
|
10 |
00F02500111-PISTON RING DE PISTON More informationQuantity required : 1 |
||||||
|
11 |
00F05005121 - CYLINDRE PISTON More informationQuantity required : 1 |
||||||
|
12 |
00F05022171 - CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/5/img/63635.jpg)
13 |
WASHER MOUNTING DE CYLINDER HEAD OEM PIAGGIO GILERA 50 SMT, RCR, GSM 1998 > 2003/DERBI 50 SENDA 2005 >-00003125280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/9/img/63669.jpg)
14 |
NUT - FOR HANDLEBAR FASTENING "PIAGGIO GENUINE PART" GILERA GSM, H@K, ZULU, SMT, RCR 1998>2005 -00008202730- More informationQuantity required : 1 |
||||||
|
15 |
00F02500021-CYLINDER HEAD GASKET More informationQuantity required : 1 |
||||||
|
16 |
00D02500671 - CAOUTCHOC ANTIVIBRATOIRE More informationQuantity required : 1 |
||||||
|
17 |
00F02500671 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
18 |
|
||||||
|
19 |
|
||||||
|
20 |
|
||||||
|
21 |
|
||||||
|
22 |
|
||||||
|
23 |
|
||||||
|
24 |
|
||||||
|
25 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/7/img/63567.jpg)
26 |
SCREW BTR (5X10) MOUNTING SPROCKET SORTIE DE BOX OEM PIAGGIO APRILIA RS 50-125 2006 > 2018, RX-SX 2006 > 2016-00000004510 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/1/img/71851.jpg)
27 |
WASHER EVENTAIL (D5) OEM PIAGGIO COMMON A LA RANGE-AP8150284 More informationQuantity required : 1 |
||||||
|
28 |
|
||||||
|
29 |
00F02502231 - JOINT SPI DU VILLEBREQUIN More informationQuantity required : 1 |
