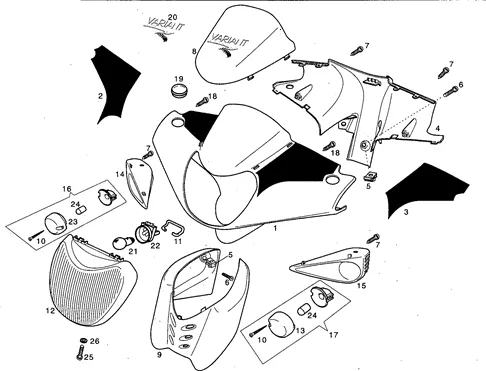

Vehicle Exploded View - DERBI VARIANT REVOLUTION 50 VARIANT REVOLUTION 1998-2001

	P2R reference	189510
	Maker reference	00F02313491C5

00F02313491C5 - R-SCTO.CARC.ANT.FARO C/C.VR 96

	P2R reference	189511
	Maker reference	00F02313492C5

00F02313492C5 - R-SCTO.CARC.ANT.FARO NG.B VR96

	P2R reference	189512
	Maker reference	00F02313493C5

00F02313493C5 - R-SCTO.CARC.ANT.FARO RJ.V 96 G

	P2R reference	189513
	Maker reference	00F02313494C

00F02313494C - R-SCTO.CARC.ANT.FARO GR.V 96 G

	P2R reference	189514
	Maker reference	00F02313495C5

00F02313495C5 - R-SCTO.CARC.ANT.FARO AZ.HIG 01

	P2R reference	189515
	Maker reference	00F01502251

00F01502251 - ADHESIF DROIT PLAQUE FRONT

	P2R reference	189516
	Maker reference	00F01502331

00F01502331 - CALCA IZ.CARCASA FARO VR 96

	P2R reference	189517
	Maker reference	00F01003521

00F01003521 - CARCASA POST.VRNT 96

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	63677
	Maker reference	000110318015

00011031801-SCREW TARAUD 3, 6X18 BLACK CL89H

	P2R reference	189518
	Maker reference	00F04901661C5

00F04901661C5 - R-SCTO.ADNO.S.CARC.F.V`96 GR/A

	P2R reference	189519
	Maker reference	00F04901662C

00F04901662C - R-SCTO.ADNO.S.CARC.F.V 96 GR/N

	P2R reference	189520
	Maker reference	00F04901663C5

00F04901663C5 - R-SCTO.ADNO.S.CARC.F.V 07 AZ.H

	P2R reference	189521
	Maker reference	00F04902661

00F04902661 - R-SCTO.ADNO.S.CARC.F.V`96 NG-R

	P2R reference	189522
	Maker reference	00F04902662C

00F04902662C - R-SCTO.ADNO.S.CARC.F.V`96 NG-G

	P2R reference	189523
	Maker reference	00F01501341

00F01501341 - ADORNO CUBRECLAXON VRNT 96

	P2R reference	64012
	Maker reference	00G01701091

00G01701091 - BOULON SERRAGE GLACE CLIGNOTAN

	P2R reference	63642
	Maker reference	000037101205

SPRING DOOR AMPOULE/LAMPE FRONT OEM DERBI 50 SENDA 2017 </GILERA 50 SMT, RCR 2017 </APRILIA 50 SX, RX 2017 <-00003710120

	P2R reference	189524
	Maker reference	00F01007011

00F01007011 - CTO.FARO DT.VRNT 96 ( SAE)

	P2R reference	188327
	Maker reference	00G01702902

00G01702902 - GLACE CLIGNOTANT ARRIERE GAUCH

	P2R reference	189525
	Maker reference	00F01700111

00F01700111 - CARCASA FARO INTTE.DR.VRNT 96

	P2R reference	189526
	Maker reference	00F01700911

00F01700911 - CARCASA FARO INTTE.IZ.VRNT 96

	P2R reference	189527
	Maker reference	00F01705021

00F01705021 - CLIGNOTEURS AV.DROIT

	P2R reference	189528
	Maker reference	00F01705311

00F01705311 - CLIGNOTEURS AV,GAUCHE

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	189529
	Maker reference	00G06301451

00G06301451 - TAPON ALOJAMTO.ESPEJO DCH.

	P2R reference	189530
	Maker reference	00F05700621

00F05700621 - ADHESIF

	P2R reference	189531
	Maker reference	00F05700622

00F05700622 - CALCA CRISTAL FARO DT.VRNT 96

	P2R reference	189532
	Maker reference	00F05700623

00F05700623 - CALCA CRISTAL FARO DT.VRNT 01

	P2R reference	189533
	Maker reference	00F05701621

00F05701621 - ADHESIF

	P2R reference	189534
	Maker reference	00F05701622

00F05701622 - ADHESIF

	P2R reference	65942
	Maker reference	219528

AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528

	P2R reference	63641
	Maker reference	000037101105

DOOR-LAMPE DE HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00003710110

	P2R reference	188322
	Maker reference	00G01702892

00G01702892-GLACE REAR RIGHT INDICATOR

	P2R reference	67298
	Maker reference	584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

	P2R reference	65408
	Maker reference	0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996
