Vehicle Exploded View - DERBI VARIANT REVOLUTION 50 VARIANT REVOLUTION 1998-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

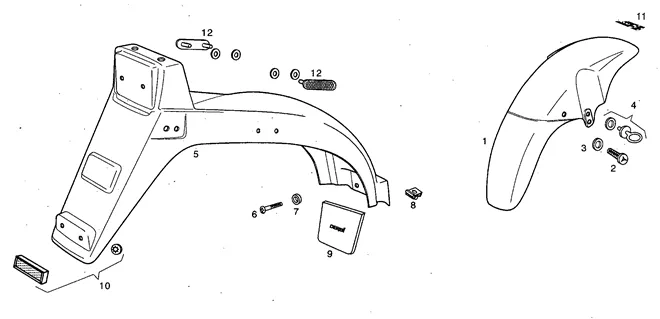

Châssis - parties plastiques - carrosseries : 5 GARDE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1063/VARIANT_REVOLUTION_1998-2001_5.png)
1 |
00F00704021C5 - GUARDAB.DT.AZUL LAPIZL.VRNT 96 More informationQuantity required : 1 |
||||||
|
1 |
00F007040225 - R-GUARDAB.DT.NG.BAUXITA VRNT 96 More informationQuantity required : 1 |
||||||
|
1 |
00F007040235 - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
|
1 |
00F007040245 - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
|
1 |
00F007040265 - R-GUARDB.DT.AZUL HIGUERA 99 More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
3 |
WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080 More informationQuantity required : 1 |
||||||
|
4 |
00H06300781C - GUIDE CABLE More informationQuantity required : 1 |
||||||
|
5 |
00F007041215 - GARDE BOUE ARR. More informationQuantity required : 1 |
||||||
|
5 |
00F00704122 - GARDE BOUE ARR. More informationQuantity required : 1 |
||||||
|
5 |
00F007041235 - R-GUARDAB.TR.AZ.HIG.REV 01 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
6 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
7 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
9 |
00F00700341 - SUPPL.GARDE-BOUE ARRIERE V.STA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/8/img/64118.jpg)
10 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752 More informationQuantity required : 1 |
||||||
|
11 |
00H04900231 - CALQUE DERBI 8 FOIS More informationQuantity required : 1 |
||||||
|
12 |
REFLECTEUR/CATADIOPTRE FORK OEM DERBI SENDA R 50 DRD 2005/SENDA SM 50 DRD 2005 > 2007/DERBI VARIANT 50 199 > 2007-00G04400751 More informationQuantity required : 1 |
