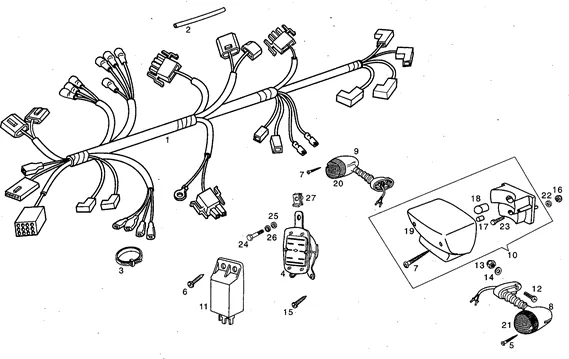

Châssis - parties plastiques - carrosseries : 9 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1063/VARIANT_REVOLUTION_1998-2001_9.png)
1 |
00F01027301 - CTO.INST.ELECT.V.REV.98 More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
4 |
00F01004311 - AVERTISSEUR More informationQuantity required : 1 |
||||||
|
5 |
00F01000591 - VIS FIX.CABOCHON More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
00G01701091 - BOULON SERRAGE GLACE CLIGNOTAN More informationQuantity required : 1 |
||||||
|
8 |
00F01703301 - ENS.CLIGNOTANT ARR.DROITE More informationQuantity required : 1 |
||||||
|
9 |
00F01703391 - ENS.CLIGNOTANT ARR. GAUCHE More informationQuantity required : 1 |
||||||
|
10 |
00F01003321 - FEU ARR. More informationQuantity required : 1 |
||||||
|
11 |
00F01740401 - CENTRALE CLIGNOTEURS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
12 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
13 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
14 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
|
15 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
||||||
|
16 |
|
||||||
|
17 |
00F01000791 - LAMPE DE POSITION 12V. 4W. BA9 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
18 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
|
19 |
00F01003341 - CABOCHON DU FEU ARRIERE More informationQuantity required : 1 |
||||||
|
20 |
00G01702902 - GLACE CLIGNOTANT ARRIERE GAUCH More informationQuantity required : 1 |
||||||
|
21 |
00G01702892-GLACE REAR RIGHT INDICATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
22 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
|
24 |
|
||||||
|
25 |
BOULON S03105900 |
||||||
|
26 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
27 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
