Vehicle Exploded View - MOTO-GUZZI V85 850 TT Strada E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

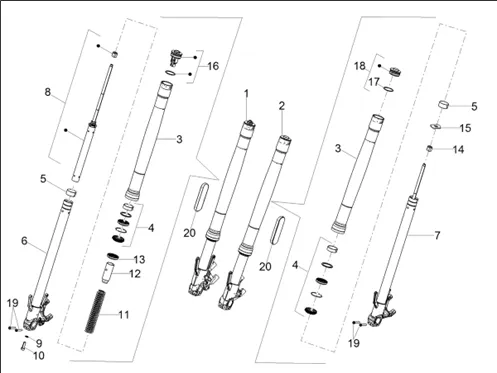

Suspensions : 04.04 FOURCHE AV. KAYABA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1218/V85_TT_Strada_E5_2024_EMEA_04.04.png)
1 |
2B011999-RH FRONT FORK LEG V85 TTS More informationQuantity required : 1 |
||||||
|
2 |
2B011997-LH FRONT FORK LEG V85 TTS More informationQuantity required : 1 |
||||||
|
3 |
2B012000-OUTER TUBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/8/8/2/img/156882.jpg)
4 |
OIL SEAL DE FORK (X2) WITH BUSH OEM PIAGGIO MOTO GUZZI V85TT 2019 >-2B006105 More informationQuantity required : 2 |
||||||
|
5 |
2B004403-BUSH DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
6 |
2B006102-ROD RIGHT More informationQuantity required : 1 |
||||||
|
7 |
2B006101-ROD LEFT More informationQuantity required : 1 |
||||||
|
8 |
2B006103-ELEM. POMPAGE CPL G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/0/2/img/145802.jpg)
9 |
WASHER PLATE DE FORK KAYABA OEM PIAGGIO APRILIA 660 TUONO-2B004406 More informationQuantity required : 1 |
||||||
|
10 |
2B004407-SCREW FIX. More informationQuantity required : 1 |
||||||
|
11 |
2B004420-SPRING More informationQuantity required : 1 |
||||||
|
12 |
2B006104-TUBETTO PRECARICA 38X3X140PVC More informationQuantity required : 1 |
||||||
|
13 |
2B004422-WASHER More informationQuantity required : 1 |
||||||
|
14 |
2B004410-RUBBER MOUNT More informationQuantity required : 1 |
||||||
|
15 |
2B004411-NUT More informationQuantity required : 1 |
||||||
|
16 |
2B004412-CAP D. More informationQuantity required : 1 |
||||||
|
17 |
2B009631 O-RING More informationQuantity required : 1 |
||||||
|
17 |
2B009631 O-RING More informationQuantity required : 1 |
||||||
|
18 |
2B004413-CAP G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
19 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/4/img/73444.jpg)
20 |
CATADIOPTRE AMBRE DE FORK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU05781630 More informationQuantity required : 2 |
