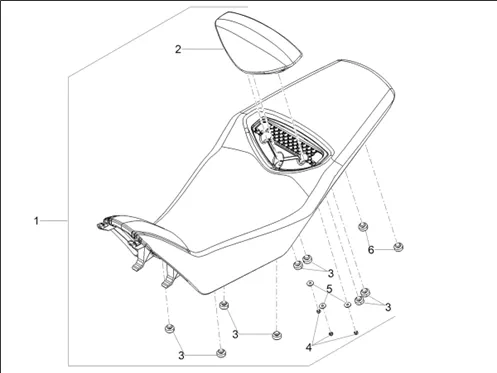

Vehicle Exploded View - MOTO-GUZZI V85 850 TT Strada E5+ 2024 (EMEA) MOTO-GUZZI

Carrosserie : 02.12 SELLE
Selle
Search
2B012067000C1 - SADDLE WITH BELT

1
P2R reference P2R reference 209605
Maker reference Maker reference 2B012067000C1

2B012067000C1-SADDLE WITH BELT

More information

Quantity required : 1

2
P2R reference P2R reference
Maker reference Maker reference 2B012069000C15

BUFFER RUBBER DE SEAT OEM APRILIA RSV4 TUONO E5-2B002692

3
P2R reference P2R reference 140892
Maker reference Maker reference 2B002692

BUFFER RUBBER DE SEAT OEM APRILIA RSV4 TUONO E5-2B002692

More information

Quantity required : 8

AP8150114 - ECROU AUTOFR. BAS

4
P2R reference P2R reference 97082
Maker reference Maker reference AP8150114

AP8150114-NUT EPAULE DIAM 6

More information

Quantity required : 3

224664 - RONDELLE

5
P2R reference P2R reference 65951
Maker reference Maker reference 224664

224664-WASHER

More information

Quantity required : 3

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

6
P2R reference P2R reference 67157
Maker reference Maker reference 577492

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

More information

Quantity required : 2
