Vehicle Exploded View - MOTO-GUZZI V85 850 TT Strada E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

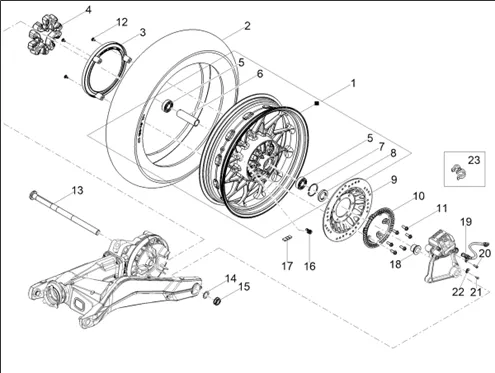

Roues : 05.02 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1218/V85_TT_Strada_E5_2024_EMEA_05.02.png)
1 |
2B011423-REAR WHEEL 4. 25X17 " WITH BEARINGS More informationQuantity required : 1 |
||||||
|
2 |
2B004442-TYRE REAR More informationQuantity required : 1 |
||||||
|
2 |
2B010335-TYRE More informationQuantity required : 1 |
||||||
|
3 |
2B011845-WHELL COVER More informationQuantity required : 1 |
||||||
|
4 |
B064290-GOMMINO PARASTRAPPI More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
5 |
BEARING (20X47X14) DE WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU92204220 More informationQuantity required : 2 |
||||||
|
6 |
2B001278-SPACER INTERIEURE DE LA WHEEL ARRIER More informationQuantity required : 1 |
||||||
|
7 |
CLIPS/CIRCLIPS OEM APRILIA (D47) COMMON A LA RANGE-AP8125842 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/9/img/45839.JPG)
8 |
OIL SEAL (28X47X7) REAR WHEEL OEM MOTO GUZZI V7, V9, V85 2020 >-AP8110109 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/4/0/2/img/99402_20260918164108.jpg)
9 |
BRAKE DISC REAR OEM PIAGGIO MOTO-GUZZI V7, NEVADA, V9, V85-887448 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/0/2/img/156902.jpg)
10 |
WHEEL PHONIQUE REAR ABS OEM MOTO GUZZI V7, V9, V85-2B004396R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/6/2/img/139062.jpg)
11 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-2B002416 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
12 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 3 |
||||||
|
13 |
2B004693-WHEEL SPINDLE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.jpg)
14 |
WASHER SPINDLE REAR WHEEL OEM APRILIA COMMON A LA RANGE-AP8125687 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
15 |
NUT REAR WHEEL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/7/img/71237.jpg)
16 |
VALVE TUBELESS COUDEE 90- OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8104728 More informationQuantity required : 1 |
||||||
|
17 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
|
18 |
2B001956-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
19 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
20 |
1C001499-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
21 |
SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-581957 More informationQuantity required : 1 |
||||||
|
22 |
859777-PLATE More informationQuantity required : 1 |
||||||
|
23 |
894704-GUIDE-CABLE More informationQuantity required : 3 |
